KOE SP12N01L6ALCZ FSTN 256×64 lcd tft screen STN , Black / White mode
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
1-3 Working Days
Brand:
KOE
Product Description
KOE SP12N01L6ALCZ FSTN 256×64 lcd tft screen STN , Black / White mode
KOE Panel SP12N01L6ALCZ FSTN-LCD , Panel General Features
| Panel Brand : | KOE |
| Panel Model : | SP12N01L6ALCZ |
| Panel Type : | FSTN-LCD , Panel |
| Panel Size : | 4.8 inch |
| Resolution : | 256×64 |
| Display Mode : | STN, Black/White mode, Transmissive |
| Active Area : | 120.29×30.05 mm |
| Outline : | 160×68×12 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 110/160 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Frequency : | 75Hz |
KOE Panel SP12N01L6ALCZ FSTN-LCD Optical Features
| Display Mode : | STN, Black/White mode, Transmissive |
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 20 : 1 (Typ.) (Transmissive) |
| Display Color : | Monochrome () |
| Response Time : | 110/160 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White Variation : | 1.43 (Max.)(9 points) |

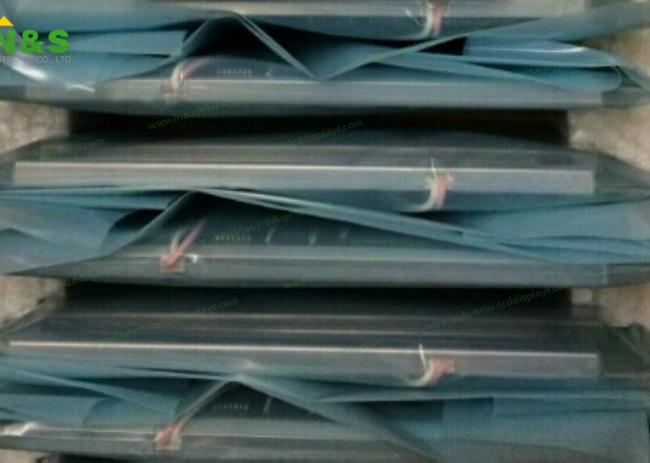

Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

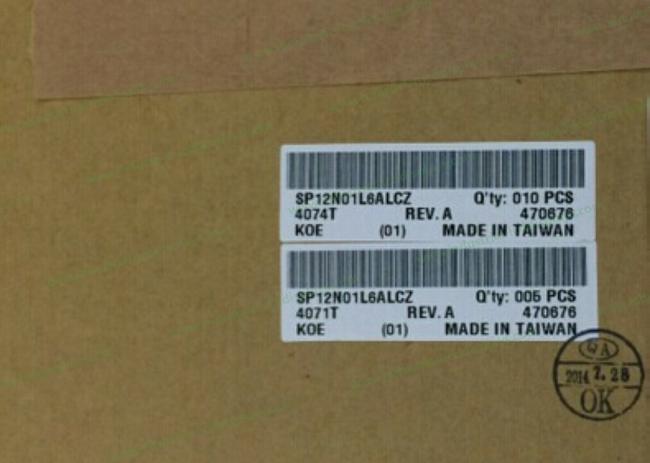

Details Pictures for KOE Panel SP12N01L6ALCZ
