Data Image FG080000DNCWAGT1 Industrial LCD Displays 8.0 inch 162.24×121.68 mm
Data Image FG080000DNCWAGT1 Industrial LCD Displays 8.0 inch 162.24×121.68 mm
Data Image FG080000DNCWAGT1 General Features
| Panel Brand : | Data Image |
| Panel Model : | FG080000DNCWAGT1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.0 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 162.24×121.68 mm |
| Outline : | 183×141×16.7 mm |
| Surface : | Antiglare |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
Company Strength
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
Data Image FG080000DNCWAGT1 Backlight System
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.293; Wy:0.345 |
| White Variation : | 1.25/1.43 (Typ./Max.)(5 points) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.

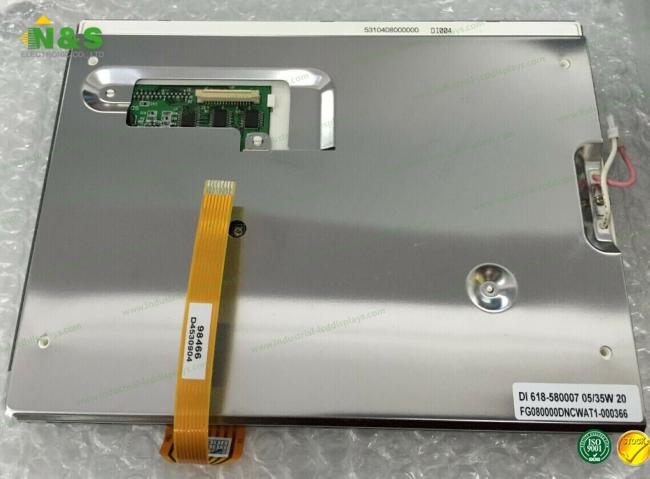

Details Pictures for Data Image FG080000DNCWAGT1
