7.0 inch 480 ( RGB ) ×234 lcd video monitor , Full color lcd tft monitor
7.0 inch 480 ( RGB ) ×234 lcd video monitor , Full color lcd tft monitor
HannStar HSD070I651-F20 General Features
| Panel Brand : | HannStar |
| Panel Model : | HSD070I651-F20 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 480(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×86.58 mm |
| Outline : | 164.9×100×6 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | Full color |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S5P WLED Without Driver |
HannStar HSD070I651-F20 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | Full color () |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
HannStar HSD070I651-F20 Mechanical Features
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 3S5P |
| Lamp Shape : | Array |
| Lamp Life Time : | 20K(Min.) (Hours) |
| Lamp Voltage : | 10.5V (Typ.) |
| Lamp Current : | 100mA (Typ.) |
| Lamps Power Consumption : | 1.20W (Max.) |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Applications:
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems

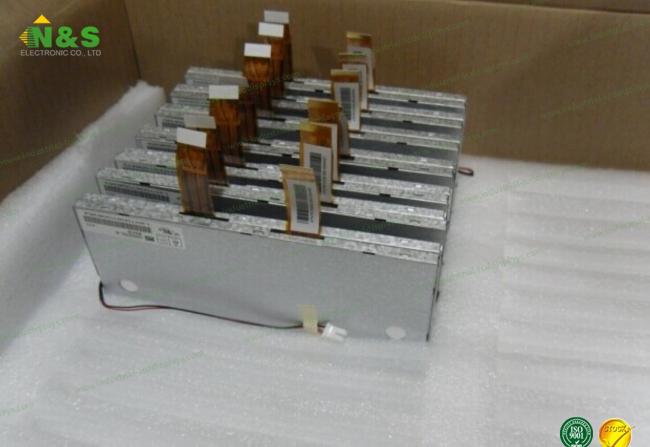

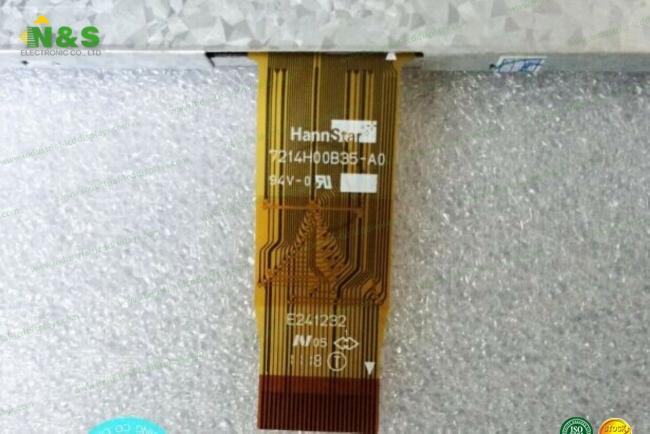

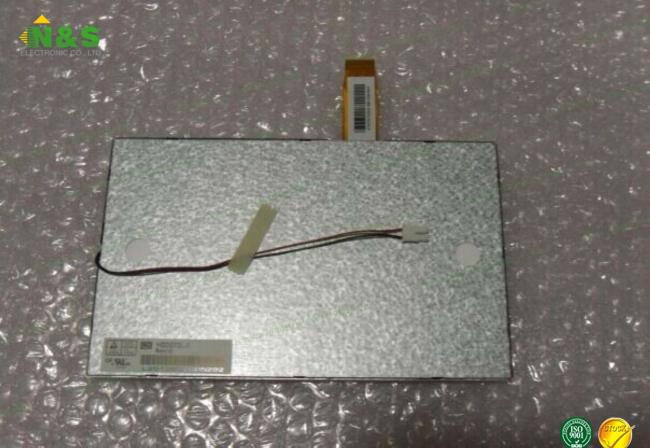

Details Pictures for HannStar HSD070I651-F20
