AUO A070SN02 V0 General Features
Panel Brand :AUO
Panel Model : A070SN02 V0
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800×600(RGB) , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 141.6×106.2 mm
Outline : 154×119.2×5.08 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.2M (6-bit + Dithering) , CIE1931 50%
Response Time : 4/16 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S6P WLED Without Driver
Signal Interface : TTL (1 ch, 8-bit) + SPI , 60 pins
Input Voltage : 3.3/5/-5/14/-14V (Typ.)(VDD/VDPA/VDNA/VGH/VGL)
AUO A070SN02 V0 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + Dithering) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 4/16 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.330 |
| White Variation : | 1.33/1.43 (Max.)(9 points) |
Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
What is Our Advantage
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
| H139BLN01.1 | AUO | 1.39" | 400×400 |
| H163QLN01.1 | AUO | 1.63" | 320×320 |
| H497TLB01 | AUO | 5.0" | 720×1280 |

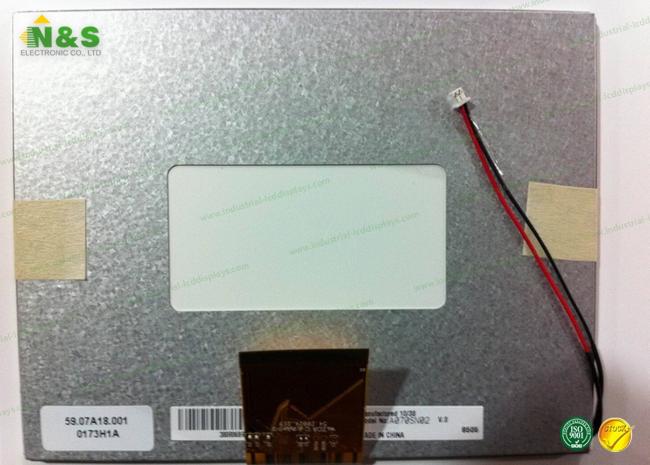

Details Pictures for A070SN02 V0
