AUO LCD Panel C070FW03 V0 7.0 inch 156.24×82.37 mm Active Area 167×93 mm Outline
AUO LCD Panel C070FW03 V0 7.0 inch 156.24×82.37 mm Active Area 167×93 mm Outline
AUO C070FW03 V0 General Features
| Panel Brand : | AUO |
| Panel Model : | C070FW03 V0 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 480(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 156.24×82.37 mm |
| Outline : | 167×93 mm |
| Surface : | Antiglare (Haze 25%) |
| Brightness : | 475 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | CIE1931 72% |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | TFT Specific Analog RGB , 30 pins |
| Input Voltage : | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
AUO C070FW03 V0 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 17:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1085×0.3520 mm (H×V) |
| Pixel Pitch : | 0.3255×0.3520 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare (Haze 25%) |
| Active Area : | 156.24×82.37 mm (H×V) |
| Bezel Area : | 159.24×84.87 mm (H×V) |
| Outline Dimension : | 167×93 mm (H×V) |
| Outline Depth : | 6.25 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
AUO C070FW03 V0 Backlight System
Lamp Position : Edge light type Lamp Type : CCFL
Lamp Amount : 1 pcs [8S6P: 8 Serial, 6 Parallel]
Lamp Shape : L shape
Lamp Life Time : 10K(Min.) (Hours)
Lamp Voltage : 560/660V (Typ./Max.)
Lamp Current : 6.5/7.0mA (Typ./Max.)
Lamp Operating Frequency : 40/80KHz (Min./Max.)
Lamp Startup Voltage : 1060/1380V (Max.)(Ta=+25/0℃)
Interface Type : Connector
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |

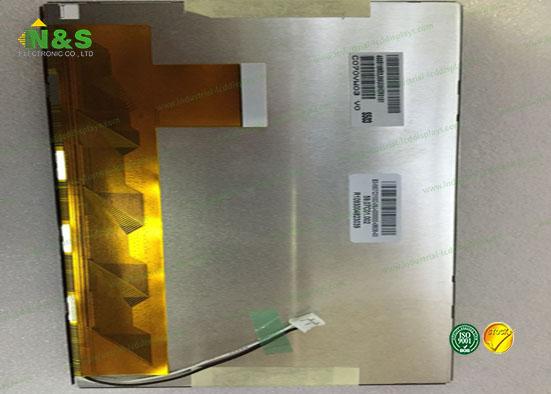

Details Pictures for AUO LCD Panel C070FW03 V0
