5.0 inch professional industrial lcd touch screen monitor LTP500GV - F01
5.0 inch professional industrial lcd touch screen monitor LTP500GV - F01
Our Service
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. fter-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
SAMSUNG LTP500GV-F01 General Features
| Panel Brand : | SAMSUNG |
| Panel Model : | LTP500GV-F01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.0 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 75.6×100.8 mm |
| Outline : | 83.84×113.2×4.8 mm |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/30/50/50 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S4P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/8.0/16.0/-8.4V (Typ.)(DVDD/AVDD/VGH/VGL) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
SAMSUNG LTP500GV-F01 Mechanical Features
| Panel Size : | 5.0 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 161 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0525×0.1575 mm (H×V) |
| Pixel Pitch : | 0.1575×0.1575 mm (H×V) |
| Weight : | 85/90g (Typ./Max.) |
| Active Area : | 75.6×100.8 mm (H×V) |
| Outline Dimension : | 83.84×113.2 mm (H×V) |
| Outline Depth : | 4.5±0.3 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
| AMS395GB04 | Samsung | 4.0" | 360×640 |
| AMS410GC01-0 | Samsung | 4.1" | 480×800 |
| AMS370FG | Samsung | 3.7" | 480×800 |
| AMS465GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS427GL34-1 | Samsung | 4.3" | 480×800 |
| AMS767KC06 | Samsung | 7.7" | 1280×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

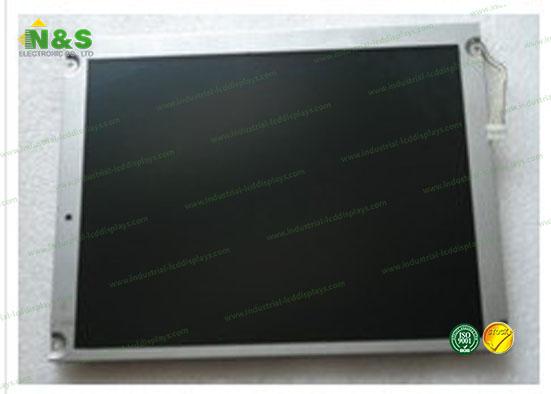

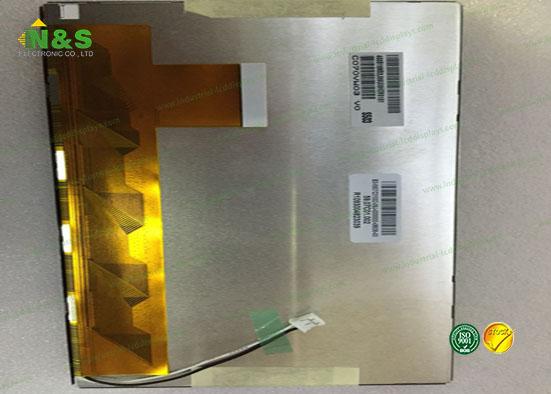

Details Pictures for Samsung LCD Panel C070FW03
