CLAA062LA01CW CPT 16 (Typ.)(Tr+Td) Response Time Antiglare Surface
CLAA062LA01CW CPT 16 (Typ.)(Tr+Td) Response Time 16:9 (H:V) Aspect Ratio Antiglare Surface
Features and Advantages :
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces
Mechanical Features :
| Panel Size : | 6.2 inch |
|---|---|
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 150 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0573×0.1609 mm (H×V) |
| Pixel Pitch : | 0.1719×0.1609 mm (H×V) |
| Weight : | 115g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 137.52×77.323 mm (H×V) |
| Bezel Area : | 140.7×80.4 mm (H×V) |
| Outline Dimension : | 155.2×88.2 mm (H×V) |
| Outline Depth : | 5.0±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
CPT CLAA062LA01CW Backlight System :
1. Lamp Position :Edge light type
2. Lamp Type : WLED
3. Lamp Amount : 3S6P
4. Lamp Shape : Array
5. Lamp Life Time : 30K(Min.) (Hours)
6. Lamp Voltage : 9.6±1.05V
7. Lamp Current : 120mA (Typ.)
8. Lamps Power Consumption : 1.17/1.3W (Typ./Max.)
9. Interface Type : Connector
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG024G401 AX | CPT | 2.4" | 240×320 |
| CLAG032HA01A0 | CPT | 3.2" | 320×480 |
| CLAG030JB01A0 | CPT | 3.0" | 240×400 |
| CLAG028GE21A0 | CPT | 2.8" | 240×320 |
| CLAD035HA01 00XA | CPT | 3.5" | 320×480 |
| CLAD032JA01X0 | CPT | 3.2" | 240×400 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
N&S Competitive Advantage:
We are a leading manufacturer of LCD products for more than 10 years.
We got the ISO9001 quality management system certification.
We have our own R&D team, and accept OEM order as per customer’s design.
We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
Our main material LCD panels all are directly imported from Samsung and LG in Korea. All products win the certificate of CE,CCC,FCC and RoHS.
Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.3-years warranty is offered.

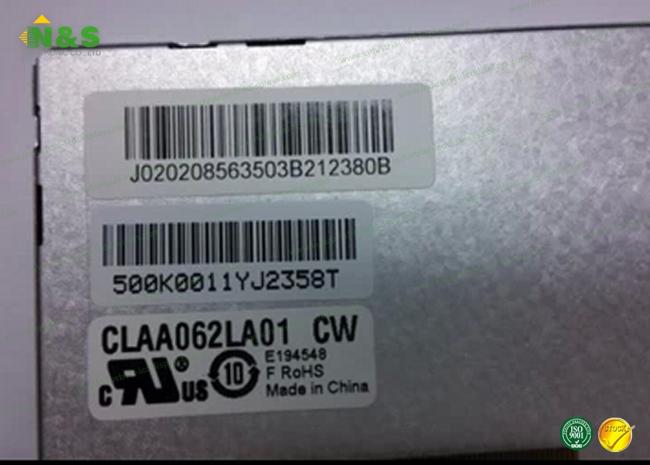

Picture for CPT CLAA062LA01CW:
