N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline
N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline
INNOLUX N101BCG-GK1 General Features
| Panel Brand : | INNOLUX |
| Panel Model : | N101BCG-GK1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.1 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 222.52×125.11 mm |
| Outline : | 234.93×139.17×4.3 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S6P WLED |
| Signal Interface : | MIPI (4 data lanes) , 39 pins |
| Input Voltage : | 3.3/1.2V (Typ.)(VDD/Core_VDD) |
INNOLUX N101BCG-GK1 Optical Features
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.18/1.25 (Typ./Max.)(5 points) |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-yearexperience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details:1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V236BJ1-PE2 | Innolux | 23.6" | 1366×768 |
| V390HN1-P02 | Innolux | 39" | 1920×1080 |
| M280HKJ-P02 | Innolux | 28.0" | 1920×1080 |
| PG047IC-01B | Innolux | 4.7" | 720×1280 |
| PP037IC-01B | Innolux | 3.7" | 480×800 |
| V650DK1-QS2 | Innolux | 65" | 3840×2160 |
| MT190AW02 V.W CELL | Innolux | 19.0" | 1440×900 |
| V580HJ1-PD6 | Innolux | 58" | 1920×1080 |
| C02706-01Z | Innolux | 2.7" | 320×240 |

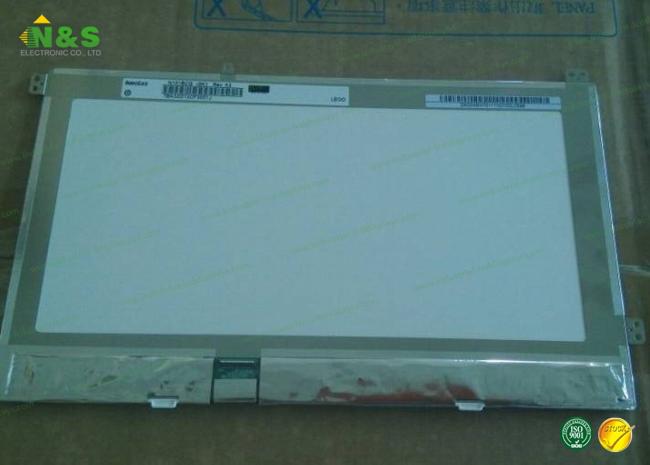

Details Pictures for Innolux LCD Panel N101BCG-GK1
