Sharp LCD Panel LQ064V3DG06 6.4 inch 130.56×97.92 mm Active Area 161.3×117×12.5 mm Outline
Sharp LCD Panel LQ064V3DG06 6.4 inch 130.56×97.92 mm Active Area 161.3×117×12.5 mm Outline
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2. Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
SHARP LQ064V3DG06 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ064V3DG06 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 6.4 inch |
| Resolution : | 640×480(RGB) , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 130.56×97.92 mm |
| Outline : | 161.3×117×12.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 8/21 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3V (Typ.) |
SHARP LQ064V3DG06 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 8/21 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.307; Wy:0.317 |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |

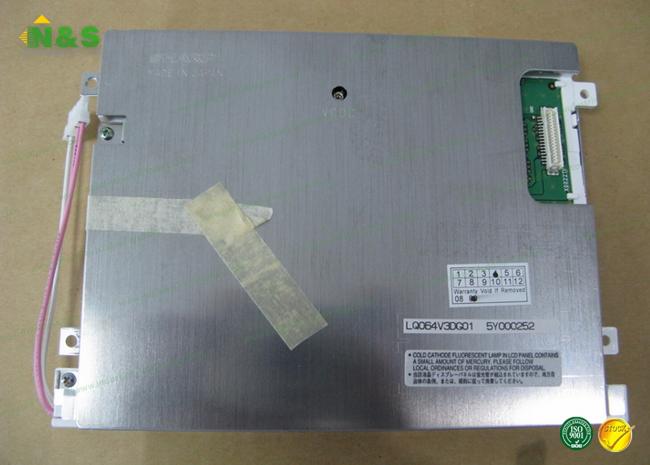

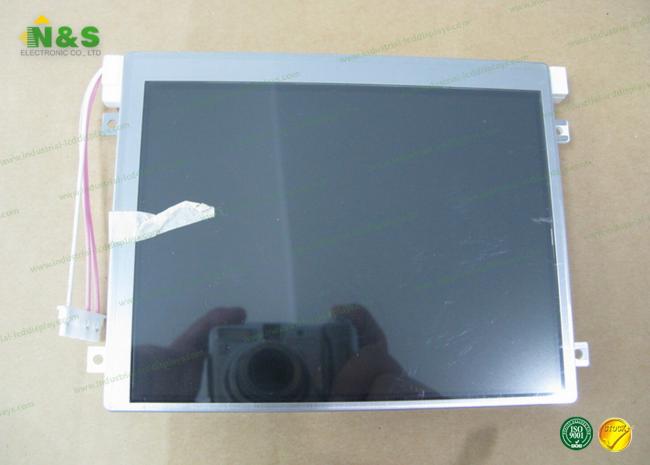

Details Pictures for Sharp LCD Panel LQ064V3DG06
