Sharp LCD Panel LQ10D367 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×11 mm Outline
Sharp LCD Panel LQ10D367 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×11 mm Outline
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. One year warranty promise
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
SHARP LQ10D367 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ10D367 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 246.5×179.4×11 mm |
| Surface : | Antiglare (Haze 28%), Hard coating (3H), Antireflection |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 100:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 5.0V (Typ.)(VCC) |
SHARP LQ10D367 Mechanical Features
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 625g (Typ.) |
| Surface : | Antiglare (Haze 28%), Hard coating (3H), Antireflection |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 216.2×163.4 mm (H×V) |
| Outline Dimension : | 246.5×179.4 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |

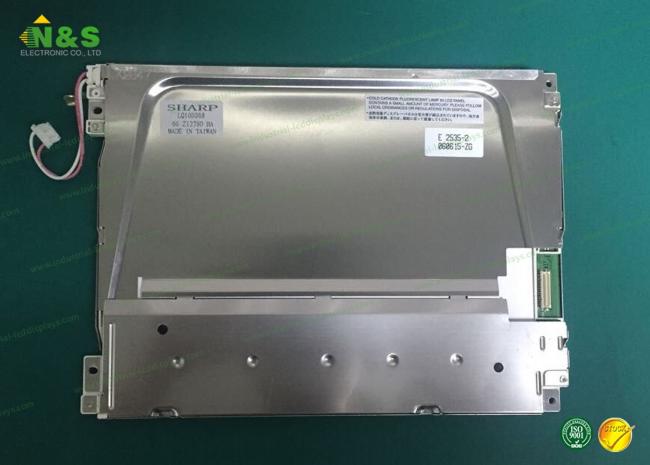

Details Pictures for Sharp LCD Panel LQ10D367
