G156BGE - L01 15.6 inch Innolux LCD Panel replacement 344.232×193.536 mm Active Area

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 1-3 Working Days
Brand: Innolux LCD Panel
Product Description





G156BGE - L01 15.6 inch innolux lcd screen replacement 344.232×193.536 mm Active Area



Details Pictures for Innolux LCD Panel G156BGE-L01INNOLUX G156BGE-L01 General Features

Panel Brand : INNOLUX
Panel Model : G156BGE-L01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.6 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 344.232×193.536 mm
Outline : 363.8×215.92×17.35 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 65%
Response Time : 3/7 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 6/8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)



INNOLUX G156BGE-L01 Mechanical Features

Panel Size : 15.6 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.084×0.252 mm (H×V)
Pixel Pitch : 0.252×0.252 mm (H×V)
Weight : 1.19/1.25 (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 344.232×193.536 mm (H×V)
Bezel Area : 347.53×196.84 mm (H×V)
Outline Dimension : 363.8×215.92 mm (H×V)
Outline Depth : 16.85±0.5 mm
Holes & Brackets : Side mounting holes; Rear mounting holes
Landscape or Portrait : Landscape type
Touch Panel : Without



We Can Do for You:

1) One-to-one service with efficient& professional support;

2) Protection of your design and all your private information;

3) We could supply hard-to-findLCD screen replacements;

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.



What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
V850DK1-QS1 Rev.C2 Innolux 85" 3840×2160
V650DJ4-QS5 Rev.M1 Innolux 65" 3840×2160
N080ICP-G01 CELL Innolux 8.0" 800×1280
DE080NA-01D Innolux 8.0" 800×480
AT080YN01 Innolux 8.0" 1024×600
PG055IA-03H Innolux 5.5" 720×1280
PP057IC-01A Innolux 5.7" 1080×1920
PG055IC-07F Innolux 5.5" 1080×1920
PB050IC-01D Innolux 5.0" 1080×1920
PG050IA-02A Innolux 5.0" 540×960

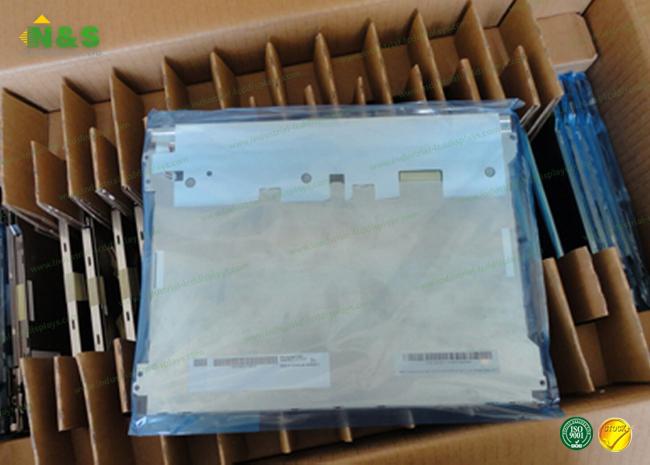

Details Pictures for Innolux LCD Panel G156BGE-L01
