3.5 Inch Sharp LCD Panel LQ035Q1DH02 , Flat Rectangle Display with White color Chromaticity
3.5 inch SHARP LQ035Q1DH02 Flat Rectangle Display Antiglare TTL lcd monitor with White color Chromaticity
Product details:
<
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0735×0.2205 mm (H×V) |
| Pixel Pitch : | 0.2205×0.2205 mm (H×V) |
| Weight : | 43g (Typ.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 70.56×52.92 mm (H×V) |
| Bezel Area : | 71.16×53.52 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 4.5±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Company information:
About Us:
N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
Parameter for LCD panel:
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 48% NTSC (CIE1931) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
Our guarantee:
(1) Our all LCD screen will be strictly tested pcs by pcs and shipped with professional & safe package.
(2) We have 12 months warranty for each LCD display, depend on the different items.
(3) We will do our best to solve any possible problem of our LCD panels for your after sale. Please contact with us if any needs.
Our Services
1. Sample all in one computer is available for your evaluation. The lead time for sample is 5-7days.
2. Fully customizable for the outlook and some functions.
3. 1 year quality warranty, perfect after-sell service.
Our website lists just some of the products we have
successfully supplied,but please note this is just
representative and an example of our products&service,
so,if you cannot see the product you are looking for, please contact us today!!!

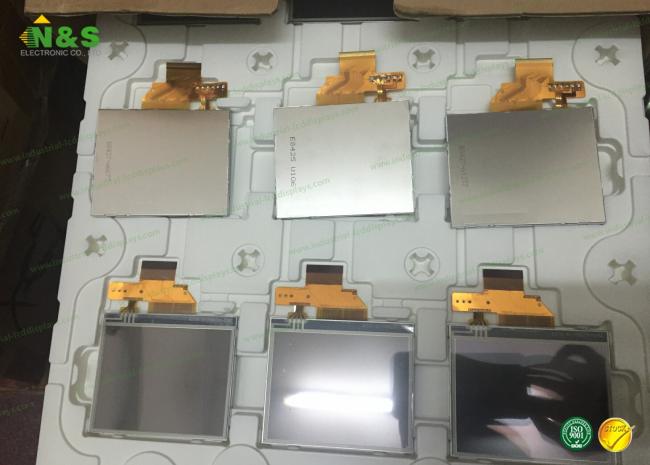

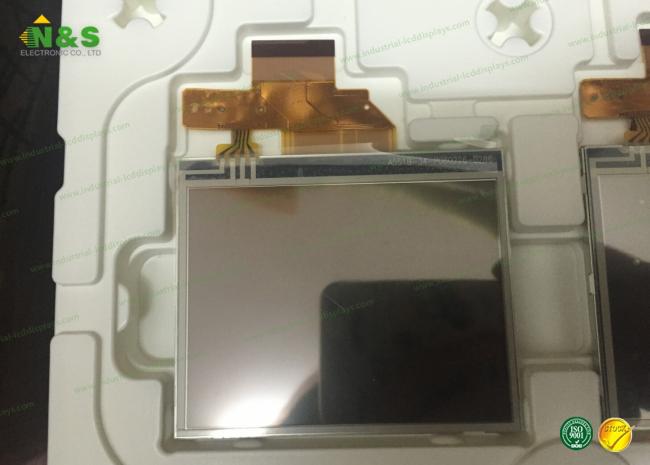

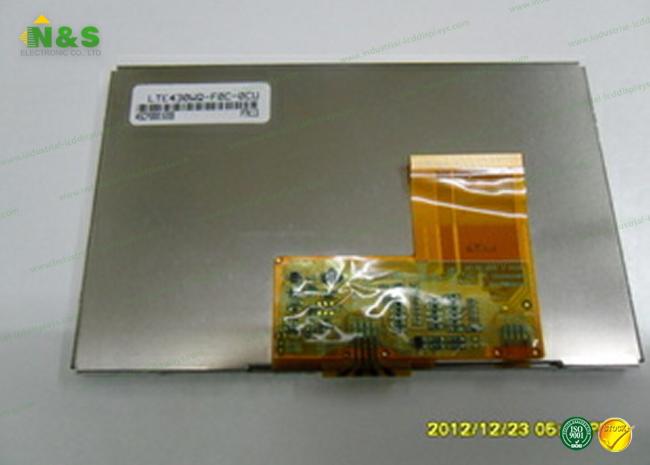

Product show:
