1280*800 13.3 inch CMO G133I1-L02 Industrial LCD Displays with wide temperature
1280*800 13.3 inch CMO G133I1-L02 Industrial LCD Displays with wide temperature
Our Service
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products.
2. Application of our lcd panles:
*Our LCD displays are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.
3. Quality to be guaranteed:
* All the panels are 100% original and brand new. Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number.
4. Quickly delivery:
*We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.
5.long-term partner:
* Products are sold to more than 150 countries. And big quantity for the long-term partners.
6. Super After-Sale service:
*One year warranty. Feel free to contact to us if there is any problems.
Products General Features
|
Panel Brand : |
CMO |
|
Panel Model : |
G133I1-L02 |
|
Panel Type : |
a-Si TFT-LCD , Panel |
|
Panel Size : |
13.3 inch |
|
Resolution : |
1280(RGB)×800 , WXGA |
|
Display Mode : |
TN, Normally White, Transmissive |
|
Active Area : |
286.08×178.8 mm |
|
Outline : |
299×195×8 mm |
|
Surface : |
Antiglare (Haze 25%) |
|
Brightness : |
400 cd/m² (Typ.) |
|
Contrast Ratio : |
800:1 (Typ.) |
|
Display Colors : |
262K (6-bit) |
|
Response Time : |
6/10 (Typ.)(Tr/Td) |
|
Viewing Angle : |
70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
|
Frequency : |
60Hz |
|
Lamp Type : |
1 pcs CCFL Without Driver |
|
Signal Interface : |
LVDS (1 ch, 6-bit) , 20 pins |
|
Input Voltage : |
3.3V (Typ.) |
Product Description
Model: G133I1-L02
|
Electronics Feature |
Vertical Frequency : |
Reverse Scan : |
|
60Hz |
No |
|
|
Optical Features |
Display Mode : |
Contrast Ratio : |
|
TN, Normally White, Transmissive |
800 : 1 (Typ.) (Transmissive) |
|
|
Display Color : |
Response Time : |
|
|
262K (6-bit) |
6/10 (Typ.)(Tr/Td) |
|
|
Viewing Angle : |
White Variation : |
|
|
70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
1.40 (Max.)(5 points) |
|
|
Backlight System |
Lamp Position : |
Lamp Type : |
|
Edge light type (Bottom side) |
CCFL |
|
|
Lamp Amount : |
Lamp Shape : |
|
|
1 pcs |
Straight |
|
|
Lamp Life Time : |
Lamp Voltage : |
|
|
50K(Min.) (Hours) |
590±59V |
|
|
Lamp Current : |
Lamp Operating Frequency : |
|
|
2.0/6.5/7.0mA (Min./Typ./Max.) |
50/80KHz (Min./Max.) |
|
|
Lamp Startup Voltage : |
Lamps Power Consumption : |
|
|
1080/1290V (Max.)(Ta=+25/0℃) |
3.84W (Typ.) |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

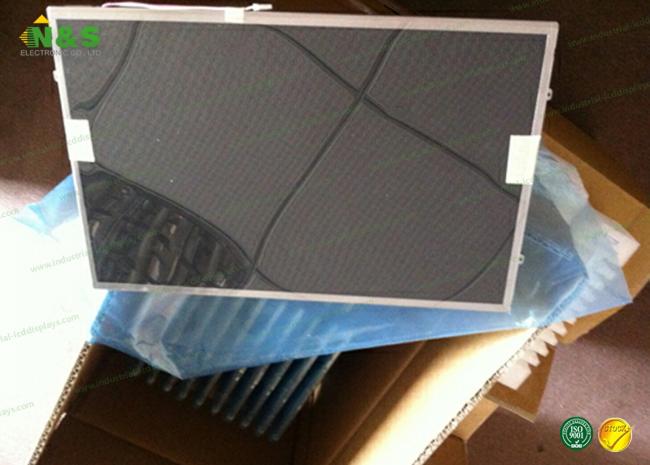

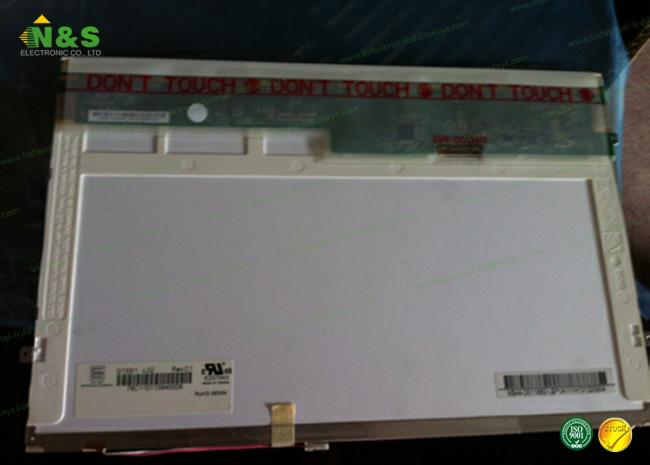

Details Picture for G133I1-L02
