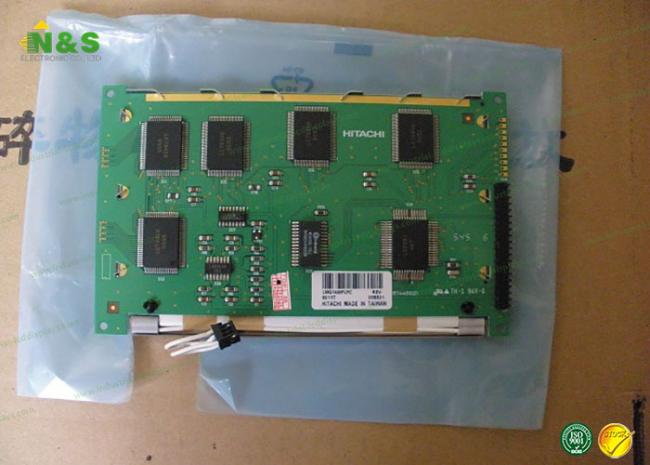

240*128 5.1 inch tft lcd module LMG7400PLFC KOE with STN, Black/White , Transmissive
240*128 5.1 tft lcd module LMG7400PLFC KOE with STN, Black/White , Transmissive
Quick Details for LMG7400PLFC LCD Panel:
| Dot Resolution | 240×128 |
| Pixel Configuration | Rectangle |
| Pixel Density | 50 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.50×0.50 mm (H×V) |
| Pixel Pitch | 0.50×0.50 mm (H×V) |
| Weight | 180g |
Specifications :
Active Area : 119.97×63.97 mm
Outline : 159.4×101×11 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 90 cd/m² (Typ.)
Contrast Ratio : 18:1 (Typ.)
Display Colors : Monochrome
Response Time : 160/110 (Typ.)(Tr/Td)
Viewing Angle : 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D)
What we do for LMG7400PLFC:
As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous Brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment. Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.
Why purchase LMG7400PLFC from N&S ELECTRONIC CO., LTD ?
Our headquarters located in Hong Kong and branch office in Shenzhen, Singapore, Malaysia and Canada. We are professional distributor on LCD panels with our own warehouse and stock. Our goal is to provide worldwide supply chain solution based on integrity.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SX19V001-Z2A | KOE | 7.5" | 640×480 |
| LMG5278XUFC-A | KOE | 9.4" | 640×480 |
| LM246X | KOE | 6.9" | 320×256 |
| SX16H003-ZZB | KOE | 6.2" | 640×240 |
| LMG7401PLFC | KOE | 5.1" | 240×128 |
| LMG6411PLGE | KOE | 5.4" | 240×128 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
