G150XTN03.1 15 inch hd lcd display 250 nits Brightness , 1024×768 XGA
G150XTN03.1 15 inch hd lcd display 250 nits Brightness , 1024×768 XGA
Quick Information
| Productor | AUO |
| MODEL | G150XTN03.1 |
| Size | 15.0 inch |
| Resolution | 1024×768 |
| Resolution Name | XGA |
| Display scale | 4:3 |
| Pixel Arrangement | RGB Vertical Stripe |
| Pixel Pitch | 0.099×0.297 mm |
| Panel Composition | LCD Screen |
| Technology | a-Si TFT-LCD |
| Applications | Industry |
| Panel Features | Gray-scale optional,White LED,built-in LED driver,mist |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Backlight System
| Lamp Position | Edge light type (Bottom side) | |||||
| Lamp Type | WLED | |||||
| Lamp Life Time | 30K(Min.) (Hours) | |||||
| Lamp Replaceable | No | |||||
| Interface Type | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | |
| E&T | 3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | ||
| Lamp Driver Board | Embedded (LED Driver) | |||||
| Lamp Driver Board | 12.0±1.2V | |||||
| Lamp Driver Board | 0.7A (Typ.) | |||||
| Lamp Driver Board | 8.4/9.24W (Typ./Max.) | |||||
Products Advantages
| · Price |
| · Product Features |
| · Product Performance |
| · Prompt Delivery |
| · Quality Approvals |
| · Reputation |
| · Service |
| · Small Orders Accepted |
| · Brand-name Parts |
| · Country of Origin |
| · Distributorships Offered |
| · Electronic Link |
| · Experienced Staff |
| · Form A |
| · Green Product |
| · Guarantee/Warranty |
| · International Approvals |
| · Military Specifications |
| · Packaging |

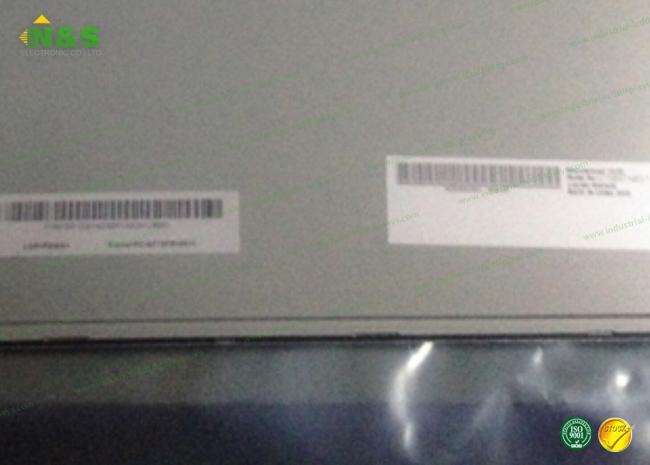

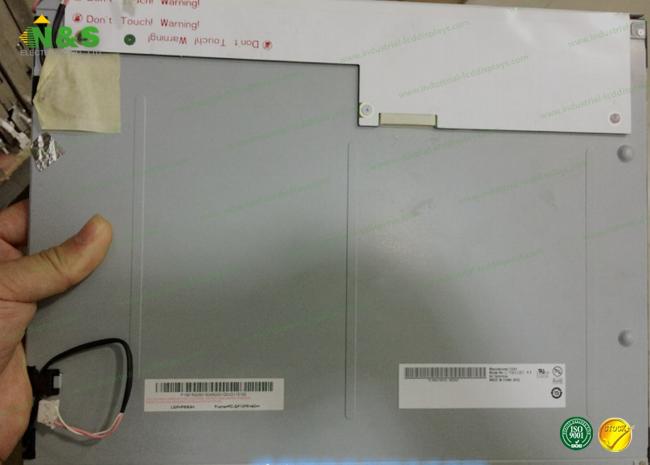

Product Image
