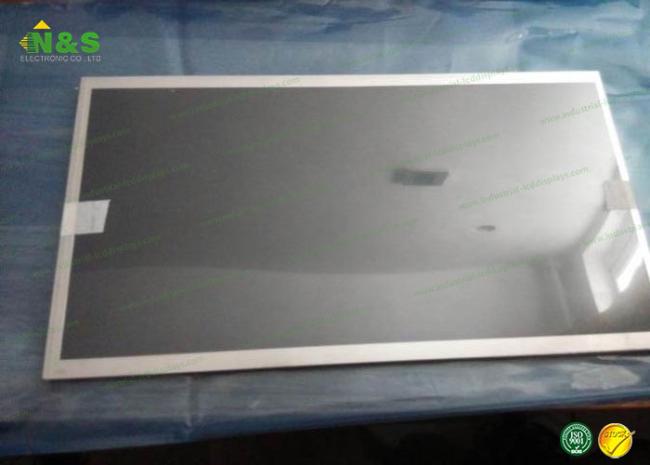

New and Original LP101WSB-TLN1 Flat Rectangle Display for 10.1 inch, 1024*600
New and Original LP101WSB-TLN1 Flat Rectangle Display for 10.1 inch, 1024*600
Trade Terms:
Payment terms: 100% by T/T when order confirmed
Lead time: 2-5 working days according to the order quantity
Sample lead time: within 3 working days after we get payment.
The price based on FOB Shenzhen,we will offer best discount according to order quantity.
Warranty:offer free spare parts within ONE year.
Offer OEM service for batch orders,to print logo and design box
Mechanical specifications:
1) The world-class manufacturer and integrator for customized LCD products from 1.44-inch to 12.1-inch with or w/o touch screen.
2) Boost of 20 years industry experience and sophisticated top rank customer service background
3) Stable long term service and delivery available relying on haier group company strength
4) With advanced management and brand vision as guideline for optimized LCD solution for customers
LG Display LP101WSB-TLN1 Mechanical Features:
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch : | 0.2175×0.2088 mm (H×V) |
| Weight : | 180g (Max.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 222.72×125.28 mm (H×V) |
| Bezel Area : | 226.9×128.5 mm (H×V) |
| Outline Dimension : | 245×146.5 mm (H×V) |
| Outline Depth : | 3.6 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LG Display LP101WSB-TLN1 Optical Features:
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 30/30/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points) |
LG Display LP101WSB-TLN1 General Features:
| Panel Brand : | LG Display |
| Panel Model : | LP101WSB-TLN1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.1 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 222.72×125.28 mm |
| Outline : | 245×146.5×3.6 mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
Safety:
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
1. Store the module in a dark room where must
keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LC150WXD-EL01 | LG Display | 15.0" | 1366×768 |
| LH220Q14-ED02 | LG Display | 2.2" | 240×320 |
| LH300Q01-ED01 | LG Display | 3.0" | 320×240 |
| LH240Q02-ED01 | LG Display | 2.4" | 240×320 |
| LB060X02-RD01 | LG Display | 6.0" | 1024×768 |
| LB115U01-RD01 | LG Display | 11.5" | 1600×1200 |
| LB097WX1-RD01 | LG Display | 9.7" | 1200×825 |
