TFT G185XW01 V1 AUO LCD Panel , thin industrial lcd display 1366×768 WXGA
TFT LCD Display G185XW01 V1 AUO 1366×768 WXGA, for Industrial Application
AUO G185XW01 V1 Optical and Electronics Features
| Optical Features | |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 68% NTSC (CIE1931) |
| Response Time : | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43/1.54 (Typ./Max.)(9 points) |
| Electronics Feature | |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 15.3W (Typ.) |
AUO G185XW01 V1 Backlight System&Signal Interface
| Backlight System | ||||||
| Lamp Position | Edge light type (Bottom side) | |||||
| Lamp Type | WLED | |||||
| Lamp Life Time | 50K(Min.) (Hours) | |||||
| Lamp Replaceable | Replaceable | |||||
| Interface Type | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | |
| E&T | 3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | ||
| Lamp Driver Board | Embedded (LED Driver) | |||||
| Lamp Driver Board | 12.0V (Typ.) | |||||
| Lamp Driver Board | 0.9/1.1A (Typ./Max.) | |||||
| Lamp Driver Board | 10.8/13.2W (Typ./Max.) | |||||
| Signal Interface | ||||||
| Signal Category | LVDS | |||||
| Signal Class | LVDS (1 ch, 8-bit) | |||||
| Input Voltage for Panel | 5.0V (Typ.) | |||||
| Input Current for Panel | 0.9/1.1A (Typ./Max.) | |||||
| Panel Power Consumption | 4.5/5.5W (Typ./Max.) | |||||
| Interface Type | Connector | |||||
| Signal Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XB30SSRL-HF16 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-170A | |
Packaging & Delivery
Packaging Details:
- Safey package
- Plastic trays inside
- 2 layes of cartons
- Fragile sign on top
- Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.

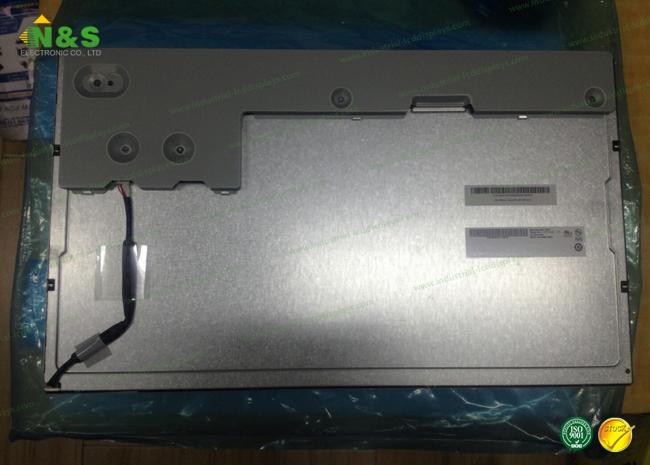

AUO G185XW01 V1 Picture Show:
