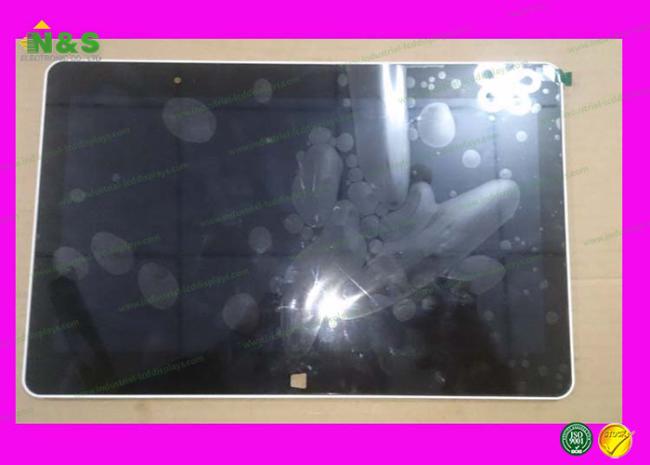

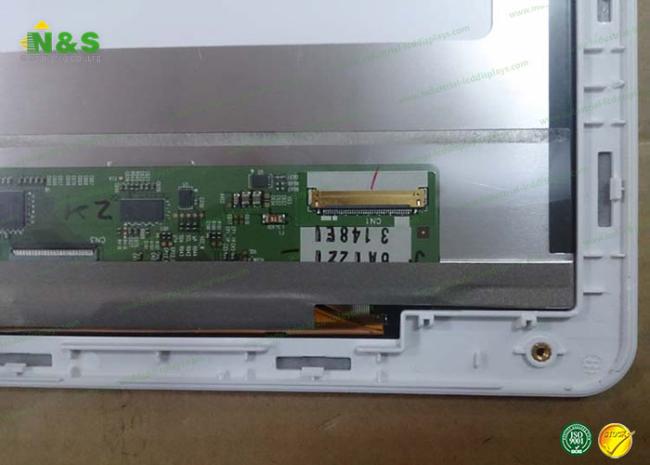

11.6 inch LP116WH4-SLA3 with high brightness 1366*768 IPS, Normally Black, Transmissive
11.6 inch LP116WH4-SLA3 with high brightness 1366*768 IPS, Normally Black, Transmissive
LG Display LP116WH4-SLA3 General Features
| Panel Brand : | LG Display |
| Panel Model : | LP116WH4-SLA3 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 11.6 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 256.125×144 mm |
| Outline : | 283.1×188.7 mm |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
LG Display LP116WH4-SLA3 Mechanical Features
| Panel Size : | 11.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 135 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch : | 0.1875×0.1875 mm (H×V) |
| Weight : | 310g (Max.) |
| Active Area : | 256.125×144 mm (H×V) |
| Outline Dimension : | 283.1×188.7 mm (H×V) |
| Landscape or Portrait : | Landscape type |
LG Display LP116WH4-SLA3 Optical Features
Display Mode : IPS, Normally Black, Transmissive
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)(13 points)
More Information For N&S electronic Co.,LTD:
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you canget the most competitive price for real products.
2. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory;Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.
3.Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;
4.long-term partner:
* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;
5. Super After-Sale service:
N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
6.the best TFT LCD solution:
*more tft lcd model detail information including,size, resolution, brightness, operating temperature or life time etc.
Trade Terms:
|
Payment terms: 100% by T/T when order confirmed Lead time: 2-5 working days according to the order quantity Sample lead time: within 3 working days after we get payment. The price based on FOB Shenzhen,we will offer best discount according to order quantity. Warranty:offer free spare parts within ONE year. Offer OEM service for batch orders,to print logo and design box. |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
| LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
| LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
