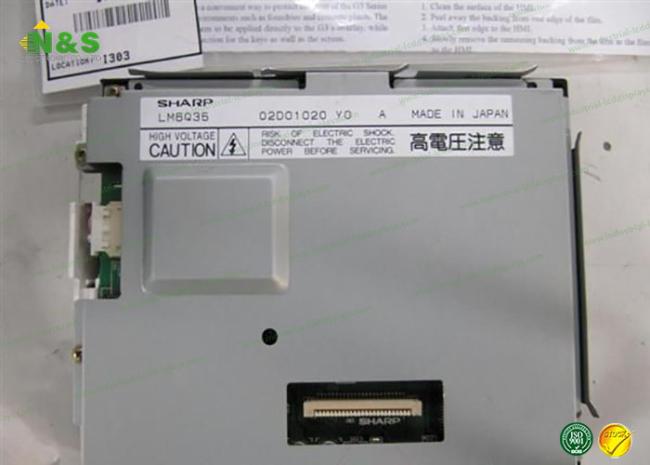

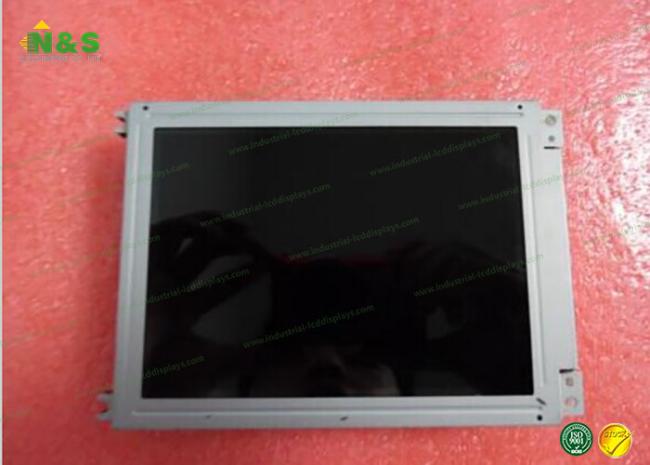

320*240 Wholesale LM6Q35 Sharp LCD Panel for 5.5 inch without touch
320*240 Wholesale LM6Q35 Sharp LCD Panel for 5.5 inch without touch
SHARP LM6Q35 Optical Features
| Display Mode : | STN, Normally Black, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 30 : 1 (Typ.) (Transmissive) |
| Display Color : | 4096 (4-bit) |
| Response Time : | 50/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/35/25/15 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.310; Wy:0.380 |
Our advantages
1. Your reply will be replied within 24 hours.
2. Good service whenever.
3. OEM service
4. No MOQ request.
5. Quick delivery: 1-3 working days
6. Each LCD panel will be tested pcs by pcs by our professional testing team.
7. One Year warranty for our LCD Screen Displays.
SHARP LM6Q35 Mechanical Features
| Panel Size : | 5.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 73 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.116×0.348 mm (H×V) |
| Pixel Pitch : | 0.348×0.348 mm (H×V) |
| Weight : | 330g |
| Active Area : | 111.335×83.495 mm (H×V) |
| Bezel Area : | 115.6×87.6 mm (H×V) |
| Outline Dimension : | 146×106.6 mm (H×V) |
| Outline Depth : | 30.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
SHARP LM6Q35 General Features
Panel Brand : SHARP
Panel Model : LM6Q35
Panel Type : CSTN-LCD , Panel
Panel Size : 5.5 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : STN, Normally Black, Transmissive
Active Area : 111.335×83.495 mm
Outline : 146×106.6×30.5 mm
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 30:1 (Typ.)
Display Colors : 4096 (4-bit)
Response Time : 50/30 (Typ.)(Tr/Td)
Viewing Angle : 35/35/25/15 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : CCFL Embedded (Inverter)
Signal Interface : Parallel RGB (1 ch, 4-bit) , 24 pins
Input Voltage : 12.0V (Typ.)
Trade Terms :
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton
2. Shipping port: Shenzhen. China
3. Shipping freights are quoted according to your requests
4. Delivery time:5-15 working days
5. 3 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.
Packaging Details:
Aatic bag, Bubble Bag, Foam Box and Carton Box.ntist
Lead time: 1-3 working days for the sample orders.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
