4.3 inch LQ043T1DH01 Sharp LCD Panel or garmin 205w lcd screen +touch screen
4.3 inch LQ043T1DH01 Sharp LCD Panel or garmin 205w lcd screen +touch screen
LQ043T1DH01 Detail
| Panel Brand : | SHARP | ||||||||
| Panel Model : | LQ043T1DH01 | ||||||||
| Panel Type : | a-Si TFT-LCD , LCM | ||||||||
| Panel Size : | 4.3 inch | ||||||||
| Resolution : | 480×272(RGB) , WQVGA | ||||||||
| Display Mode : |
|
||||||||
| Active Area : | 95.04×53.86 mm | ||||||||
| Outline : | 105.5×67.2×5.3 mm | ||||||||
| Surface : | Antiglare, Hard coating (2H) | ||||||||
| Brightness : | 360 cd/m² (Typ.) | ||||||||
| Contrast Ratio : | 300:1 (Typ.) | ||||||||
| Display Colors : | 262K (6-bit) , CIE1931 48% | ||||||||
| Response Time : | 30/30 (Typ.)(Tr/Td) | ||||||||
| Viewing Angle : | 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D) | ||||||||
| Frequency : |
|
||||||||
| Lamp Type : | 9S1P WLED Without Driver | ||||||||
| Signal Interface : | Parallel RGB (1 ch, 6-bit) + SPI , 67 pins | ||||||||
| Input Voltage : | 1.8/3.3/2.8V (Typ.)(VDDIO/VCI) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
| Panel Size : | 4.3 inch | |
| Dot Resolution : | 480×272(RGB) (WQVGA) | |
| Pixel Configuration : | RGB Horizontal Stripe | |
| Pixel Density : | 128 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.198×0.066 mm (H×V) | |
| Pixel Pitch : | 0.198×0.198 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (2H) | |
| Active Area : | 95.04×53.86 mm (H×V) | |
| Bezel Area : | 97.2×56.0 mm (H×V) | |
| Outline Dimension : | 105.5×67.2 mm (H×V) | |
| Outline Depth : | 5.05±0.25 mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |

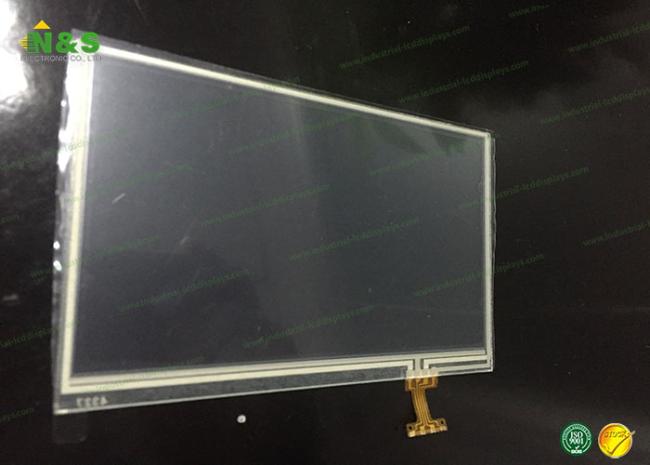

| Touch Panel : | Embeded (4-wire Resistive) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

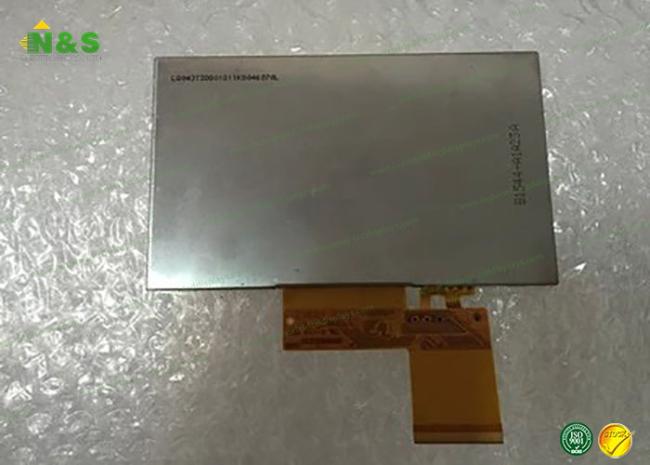

LQ043T1DH01 Picture
