New and Original for LCD LQ043T1DH42 Screen Display + Touch Sharp LCD Panel 4.3 inch
New and Original for LCD LQ043T1DH42 Screen Display + Touch Sharp LCD Panel 4.3 inch
LQ043T1DH42 Detail
| Panel Brand : | SHARP | |
| Panel Model : |
|
|
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 4.3 inch | |
| Resolution : |
|
|
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 95.04×53.856 mm | |
| Outline : | 105.5×67.2×4.45 mm | |
| Surface : | Antiglare, Hard coating (2H) | |
| Brightness : | 360 cd/m² (Typ.) | |
| Contrast Ratio : | 300:1 (Typ.) | |
| Display Colors : | 262K (6-bit) , CIE1931 48% | |
| Response Time : | 8/8 (Typ.)(Tr/Td) | |
| Viewing Angle : | 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | ||
| Lamp Type : | 9S1P WLED Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) + SPI , 67 pins | |
| Input Voltage : | 1.8/(3.3/2.8)V (Typ.)(VDDIO/VCI) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| Panel Size : | 4.3 inch | |
| Dot Resolution : | 480×272(RGB) (WQVGA) | |
| Pixel Configuration : | RGB Horizontal Stripe | |
| Pixel Density : | 128 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
|
0.198×0.066 mm (H×V) | |
| Pixel Pitch : | 0.198×0.198 mm (H×V) | |
| Weight : | 51g (Typ.) | |
| Surface : | Antiglare, Hard coating (2H) | |
| Active Area : | 95.04×53.856 mm (H×V) | |
| Bezel Area : | 97.2×56.0 mm (H×V) | |
| Outline Dimension : | 105.5×67.2 mm (H×V) | |
| Outline Depth : | 4.2±0.25 mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Embeded (4-wire Resistive) |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

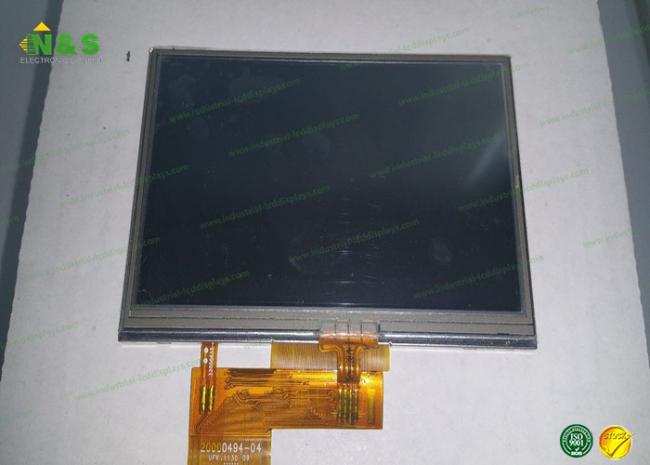

LQ043T1DH42 Picture
