LQ049B5DG01 Sharp LCD Panel 4.9 inch LCM 320×96 350 60:1 262K CCFL TTL
LQ049B5DG01 Sharp LCD Panel 4.9 inch LCM 320×96 350 60:1 262K CCFL TTL
Quality Control:
- Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
- Function Inspection
Make sure all functions are 100% tested ok
LQ049B5DG01 Product Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ049B5DG01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 4.9 inch | |
| Resolution : |
|
|
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 120×36 mm | |
| Outline : | 142×54 mm | |
| Surface : |
|
|
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 60:1 (Min.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥10) (L/R/U/D) | |
| Lamp Type : |
|
|
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 30 pins | |
| Input Voltage : | 5.0/10.0/-10.0V (Typ.)(VSH/VGH/VGL) |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Panel Size : | 4.9 inch | |
| Dot Resolution : | 320(RGB)×96 | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 67 PPI | |
| Aspect Ratio : | >3:1 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.125×0.375 mm (H×V) | |
| Pixel Pitch : | 0.375×0.375 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare | |
| Active Area : | 120×36 mm (H×V) | |
| Bezel Area : | 125.6×41.6 mm (H×V) | |
| Outline Dimension : | 142×54 mm (H×V) | |
| Outline Depth : | 13.0 (Typ.) mm | |
| Holes & Brackets : | Rear mounting holes (4-Ф2.2) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

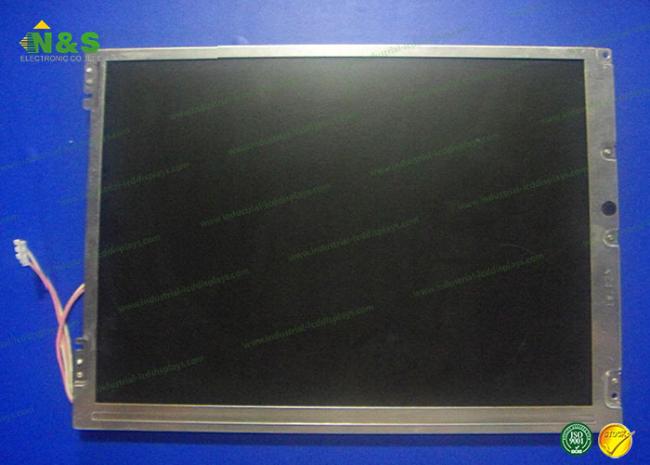

LQ049B5DG01 Picture
