LCD DISPLAY 4.9 inch MODULE LQ049B5DG02 screen for Mercedes car audio systems
LCD DISPLAY 4.9 inch MODULE LQ049B5DG02 screen for Mercedes car audio systems
LQ049B5DG02 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ049B5DG02 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 4.9 inch | |
| Resolution : | 320(RGB)×96 | |
| Display Mode : |
|
|
| Active Area : | 120×36 mm |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
| Panel Size : | 4.9 inch |
| Dot Resolution : | 320(RGB)×96 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 67 PPI |
| Aspect Ratio : | >3:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.125×0.375 mm (H×V) |
| Pixel Pitch : | 0.375×0.375 mm (H×V) |
| Active Area : | 120×36 mm (H×V) |
| Landscape or Portrait : | Landscape type |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

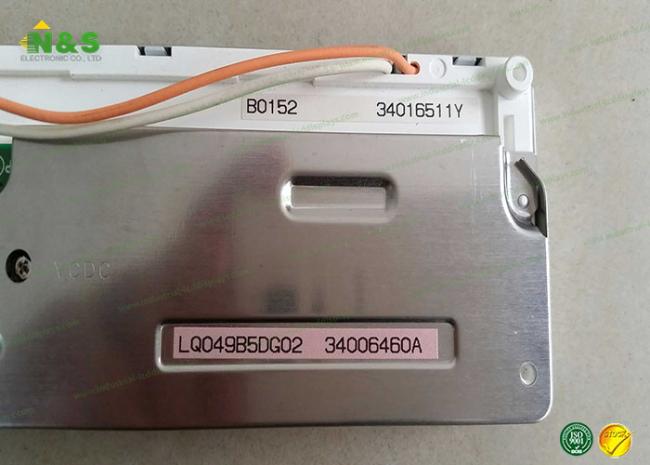

LQ049B5DG02 Picture
