LQ050A3AD01 Sharp LCD Panel Original A+ Grade 5.0 inch LCD Display Panel for Industrial Equipment
LQ050A3AD01 Sharp LCD Panel Original A+ Grade 5.0 inch LCD Display Panel for Industrial Equipment
LQ050A3AD01 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ050A3AD01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 5.0 inch | |
| Resolution : | 320(RGB)×234 | |
| Display Mode : |
|
|
| Active Area : | 102.24×74.76 mm | |
| Outline : | 127.5×90.3×20 mm | |
| Surface : | ||
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 100:1 (Min.) | |
| Display Colors : | Full color | |
| Response Time : | 15/20 (Typ.)(Tr/Td) | |
| Viewing Angle : |
|
|
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) | |
| Signal Interface : | Analog RGB + Composite Video (NTSC/PAL) , 24 pins | |
| Input Voltage : | 12.0V (Typ.) |
| Panel Size : | 5.0 inch | |
| Dot Resolution : | 320(RGB)×234 | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 79 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : |
|
|
| Dot Pitch : | 0.1065×0.3195 mm (H×V) | |
| Pixel Pitch : | 0.3195×0.3195 mm (H×V) | |
| Weight : | 215±10g | |
| Active Area : | 102.24×74.76 mm (H×V) | |
| Bezel Area : | 107.5×79.9 mm (H×V) | |
| Outline Dimension : | 127.5×90.3 mm (H×V) | |
| Outline Depth : | 17.3/20.0 (Typ./Max.) mm | |
| Landscape or Portrait : |
|
|
| Touch Panel : | Without |
Our Advantages
- We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
- 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
- Welcome small, medium & big quantity orders.
- 100% QC Inspection before Shipment.
- After-sales-service With 12 Months Warranty for our LCD panels.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

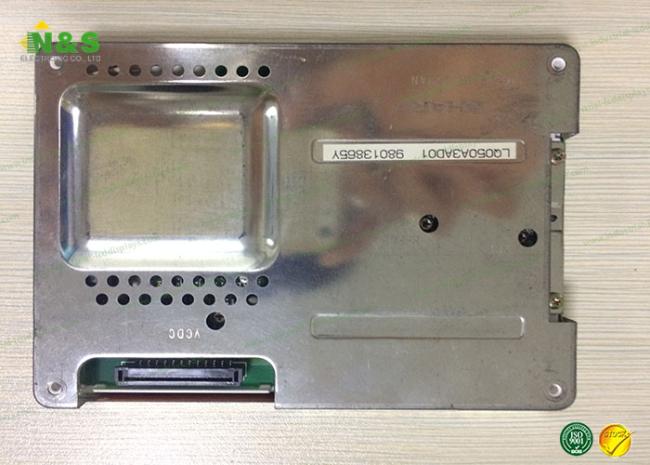

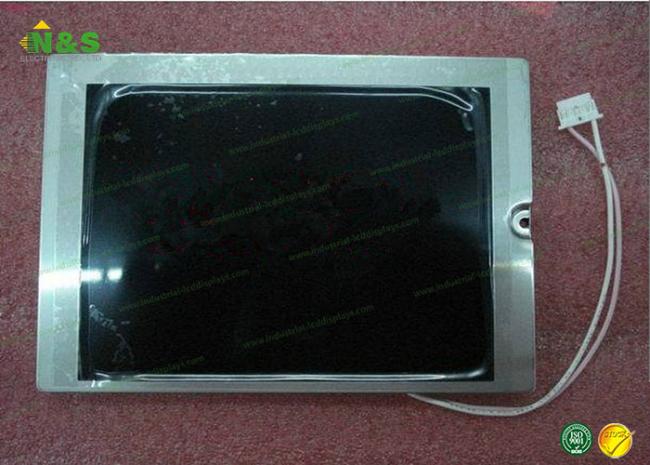

LQ050A3AD01 Picture
