Normally White LQ065T5GG02 Sharp LCD Panel 6.5 inch LCM 480×234 60 / 1 CCFL Analog

Normally White LQ065T5GG02 Sharp LCD Panel 6.5 inch LCM 480×234 400 60:1 Full color CCFL Analog

LQ065T5GG02 Detail

Panel Brand :	SHARP
Panel Model :	LQ065T5GG02
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	6.5 inch
Resolution :	480(RGB)×234
Display Mode :	TN, Normally White, Transmissive
Active Area :	142.56×80.73 mm
Outline :	158.5×95.5 mm
Surface :	Antiglare, Antireflection
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	60:1 (Min.)
Display Colors :	Full color
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	65/65/40/65 (Typ.)(CR≥5) (L/R/U/D)
Lamp Type :	1 pcs CCFL Without Driver
Signal Interface :	TFT Specific Analog RGB , 32 pins
Input Voltage :	5.3/13.0/-9.3/-10.9/-16.0V (Typ.)(VSH/VGH/VGL/VCC/VSS)

Below are our other LCD panels stock for your easy reference:

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

1. Provide excellent LCD screen replacements with competitive price.
2. Safe, quick and efficient supply chain.
3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
4. Your problems will be replied within 24 hours.

Panel Size :	6.5 inch
Dot Resolution :	480(RGB)×234
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	82 PPI
Aspect Ratio :	16:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.099×0.345 mm (H×V)
Pixel Pitch :	0.297×0.345 mm (H×V)
Weight :	192g (Typ.)
Surface :	Antiglare, Antireflection
Active Area :	142.56×80.73 mm (H×V)
Outline Dimension :	158.5×95.5 mm (H×V)
Outline Depth :	8.5 (Typ.) mm
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Packaging & Shipping:

Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

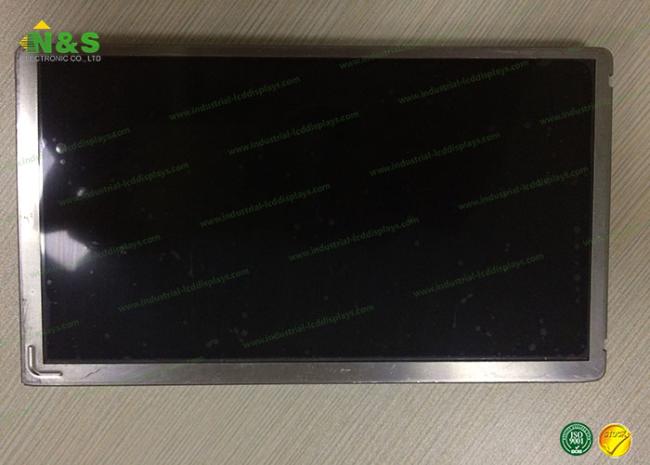

 LQ065T5GG02 Picture
