LQ150X1LCD3 LCM 16.2M CCFL LVDS Sharp LCD Panel 85 PPI Pixel Density
Normally White LQ150X1LCD3 15.0 inch Sharp LCD Panel LCM 1024×768 400 400:1 16.2M CCFL LVDS
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
LQ150X1LCD3 Specification
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)x768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099x0.297 mm (HxV) |
| Pixel Pitch : | 0.297x0.297 mm (HxV) |
| Weight : | 1.32±0.05Kgs |
| Surface : | Hard coating (2H) |
| Active Area : | 304.1x228.1 mm (HxV) |
| Bezel Area : | 307.2x231.1 mm (HxV) |
| Outline Dimension : | 331.6x254.8 mm (HxV) |
| Outline Depth : | 31.85±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-3.2, 2-R2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25 (Max.)(5 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

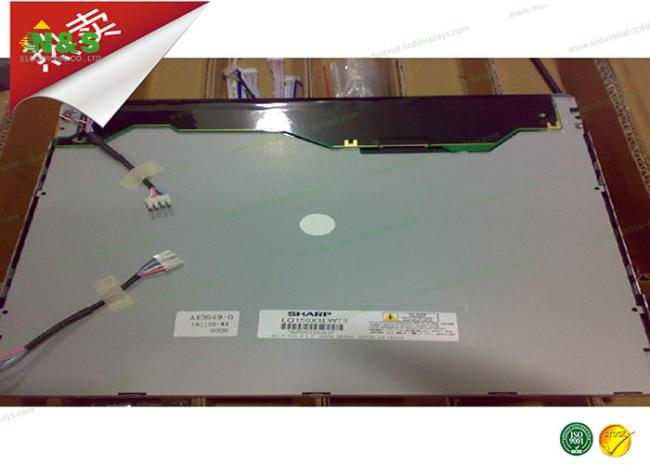

LQ150X1LCD3 Picture
