LQ150X1LGN3 15 lcd panel , hd lcd display resolution 1024 * 768 326×252 mm Outline

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 1-3WORK DAY
Brand: SHARP
Product Description



LQ150X1LGN3 15 lcd panel , hd lcd display resolution 1024 * 768 326×252 mm Outline



LQ150X1LGN3 Product Information

Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.10Kgs (Max.)
Outline Dimension : 326×252 mm (H×V)
Outline Depth : 11.5 mm
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 350 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Viewing Angle : 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
Sunlight Readable : N



Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.



Our service

1. Agent Brand:

* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

2. Quality to be guaranteed:

* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

  1. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

  1. long-term partner:

* Products are sold to more than 20 countries.

  1. Super After-Sale service:

* One year warranty .

6. The best TFT LCD solution:

*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

To get the latest prices, pls feel free to contact us.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800
LQ133T1JW14B SHARP 13.3" 2560×1440

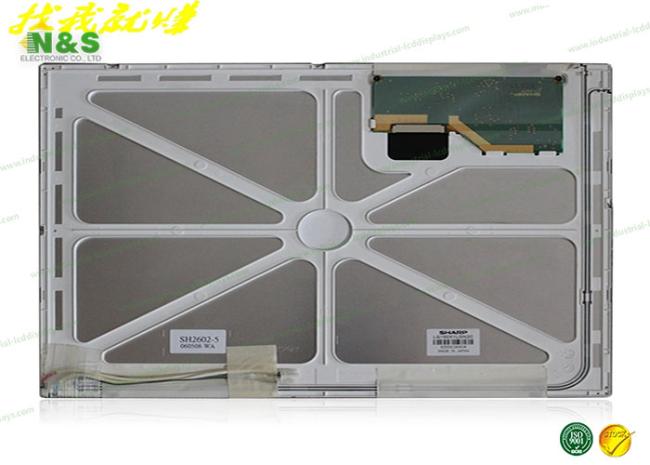

LQ150X1LGN3 Picture
