152.4×91.44 mm LQ070Y3DG01 7.0 inch Sharp LCD Panel for Digital Photo Frame

152.4×91.44 mm LQ070Y3DG01 7.0 inch Sharp LCD Panel for Digital Photo Frame

Company Strength:

1>ISO9001 certificated.

2> Competitive Price and Short Lead-time

3> Professional Team with Rich Experiences in LCD Screen International trade.

4> Small MOQ Support & Fast Response to Customers

5> Long Product Life Time

6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.

7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.

8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

LQ070Y3DG01 Specification

Panel Brand :	SHARP
Panel Model :	LQ070Y3DG01
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	7.0 inch
Resolution :	800(RGB)×480 , WVGA
Display Mode :	Transmissive
Active Area :	152.4×91.44 mm
Outline :	175×111.5×13.8 mm
Surface :
Brightness :	380 cd/m² (Typ.)
Contrast Ratio :	350:1 (Typ.)
Display Colors :	262K (6-bit)
Response Time :	10/15 (Typ.)(Tr/Td)
Viewing Angle :	60/60/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	1 pcs CCFL Without Driver
Signal Interface :	CMOS (1 ch, 6-bit) , 32 pins
Input Voltage :	5.0V (Typ.)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Size :	7.0 inch
Dot Resolution :	800(RGB)×480 (WVGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	133 PPI
Aspect Ratio :	15:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.0635×0.1905 mm (H×V)
Pixel Pitch :	0.1905×0.1905 mm (H×V)
Weight :	340g (Typ.)
Active Area :	152.4×91.44 mm (H×V)
Bezel Area :	157.2×96.35 mm (H×V)
Outline Dimension :	175×111.5 mm (H×V)
Outline Depth :	13.5/13.8 (Typ./Max.) mm
Holes & Brackets :	Rear mounting holes (4-Φ2.2)
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Packaging & Shipping:

Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

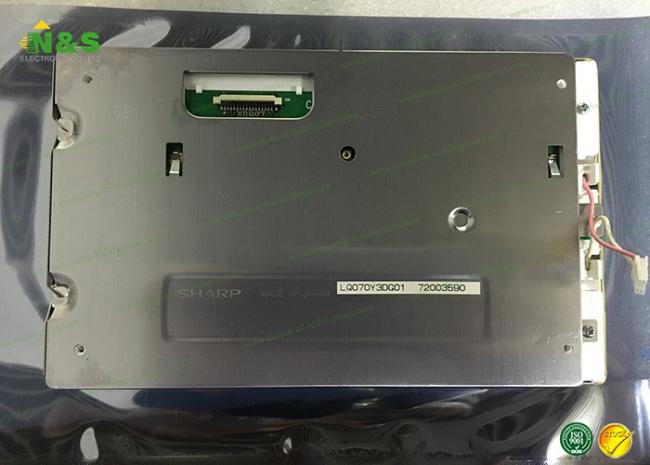

LQ070Y3DG01 Picture
