LQ080T5GG01 Sharp LCD Panel 8.0 inch Normally White with 176.4×99.22 mm

 LQ080T5GG01 Sharp LCD Panel 8.0 inch Normally White with 176.4×99.22 mm

Our Advantages

• We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
• 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
• Welcome small, medium & big quantity orders.
• 100% QC Inspection before Shipment.
• After-sales-service With 12 Months Warranty for our LCD panels.

LQ080T5GG01  Detail

Panel Brand :	SHARP
Panel Model :	LQ080T5GG01
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	8.0 inch
Resolution :	480(RGB)×234
Display Mode :	TN, Normally White, Transmissive
Active Area :	176.4×99.22 mm
Outline :	193.3×116.5 mm
Surface :	Antiglare, Antireflection
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	60:1 (Min.)
Display Colors :	Full color
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	65/65/55/65 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :	1 pcs CCFL Without Driver
Signal Interface :	TFT Specific Analog RGB , 32 pins
Input Voltage :	5.3/13/-9.5/-10.9/-16V (Typ.)(VSH/VGH/VGL/VCC/VSS)

Panel Size :	8.0 inch
Dot Resolution :	480(RGB)×234
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	67 PPI
Aspect Ratio :	16:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.1225×0.4240 mm (H×V)
Pixel Pitch :	0.3675×0.4240 mm (H×V)
Weight :	250±20g
Surface :	Antiglare, Antireflection
Active Area :	176.4×99.22 mm (H×V)
Outline Dimension :	193.3×116.5 mm (H×V)
Outline Depth :	8.8 (Typ.) mm
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Below are our other LCD panels stock for your easy reference:

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

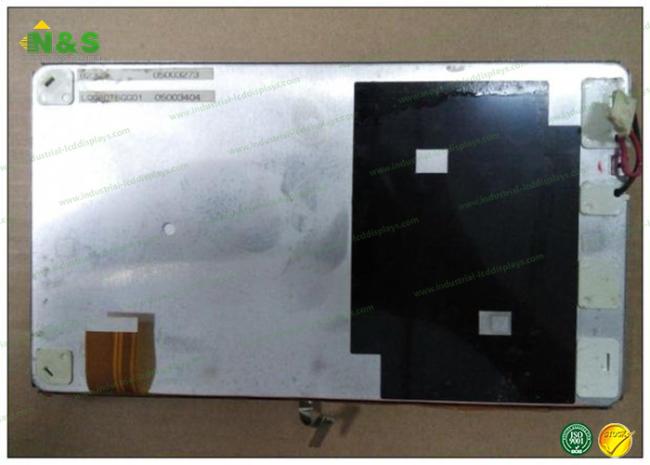

LQ080T5GG01 Picture
