174×104.4 mm LQ080Y5DR04 Sharp LCD Panel 8.0 inch for Automotive Display

174×104.4 mm LQ080Y5DR04 Sharp LCD Panel 8.0 inch for Automotive Display

LQ080Y5DR04 Detail

Panel Brand :	SHARP
Panel Model :	LQ080Y5DR04
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	8.0 inch
Resolution :	800(RGB)×480 , WVGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	174×104.4 mm
Outline :	190×120 mm
Surface :
Brightness :	480 cd/m² (Typ.)
Contrast Ratio :
Display Colors :	262K (6-bit)
Response Time :
Viewing Angle :
Lamp Type :	WLED
Signal Interface :	Parallel RGB (1 ch, 6-bit)


Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items


Panel Size :	8.0 inch
Dot Resolution :	800(RGB)×480 (WVGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	116 PPI
Aspect Ratio :	15:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.0725×0.2175 mm (H×V)
Pixel Pitch :	0.2175×0.2175 mm (H×V)
Weight :	290g (Max.)
Active Area :	174×104.4 mm (H×V)
Outline Dimension :	190×120 mm (H×V)
Outline Depth :	8.0 (Typ.) mm
Landscape or Portrait :	Landscape type


Below are our other LCD panels stock for your easy reference:

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

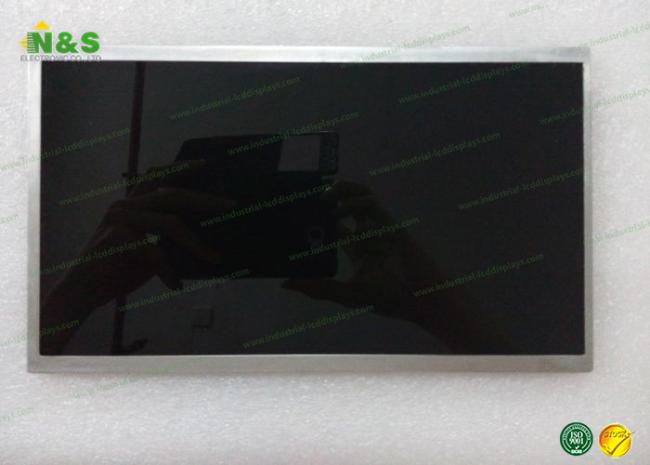

LQ080Y5DR04 Picture
