M150XN07 V2 15.0 inch thin computer lcd display with 304.128×228.096 mm
Normally White M150XN07 V2 AUO LCD Panel 15.0 inch with 304.128×228.096 mm
M150XN07 V2 Specification
| Panel Brand : | AUO |
| Panel Model : | M150XN07 V2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 326.5×253.5×12.15 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) , CIE1931 65% |
| Response Time : | 8.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/65/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
- AUO LCD Screen
- Samsung LCD Display
- LG LCD Screen replacements
- Sharp LCD panels &Chimei LCD Parts.
- Innolux LCD Modules & BOE LCD Screen.
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.00Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 8.75/12.15 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

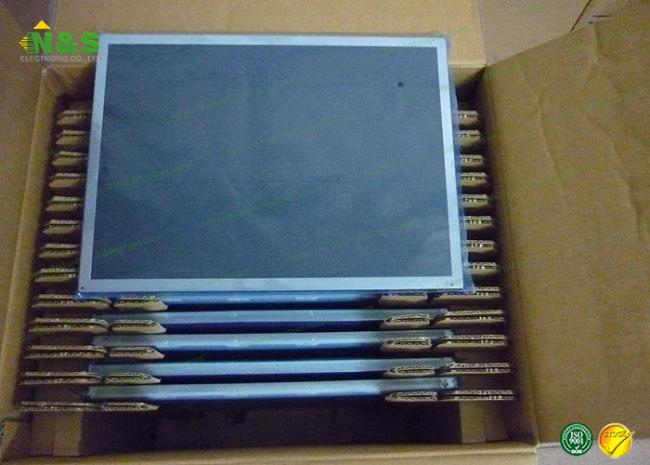

M150XN07 V2 Picture
