5.0 inch AT050TN33 INNOLUX LCD Panel LCM 480×272 300 500:1 16.7M WLED TTL
5.0 inch AT050TN33 INNOLUX LCD Panel LCM 480×272 300 500:1 16.7M WLED TTL
AT050TN33 Specification
| Panel Brand : | INNOLUX |
| Panel Model : | AT050TN33 1 Compatible model |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 110.88×62.832 mm |
| Outline : | 120.7×75.8×4.45 mm |
| Surface : | Antiglare |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S2P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
| Panel Size : | 5.0 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 109 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.077×0.231 mm (H×V) |
| Pixel Pitch : | 0.231×0.231 mm (H×V) |
| Weight : | 83g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 110.88×62.832 mm (H×V) |
| Bezel Area : | 113.90×65.85 mm (H×V) |
| Outline Dimension : | 120.7×75.8 mm (H×V) |
| Outline Depth : | 4.25±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive, Film / Glass) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| PG055IC-07F | Innolux | 5.5" | 1080×1920 |
| PB050IC-01D | Innolux | 5.0" | 1080×1920 |
| PG050IA-02A | Innolux | 5.0" | 540×960 |
| V400DK1-QE2 | Innolux | 40" | 3840×2160 |
| V650DK1-QS3 | Innolux | 65" | 3840×2160 |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.

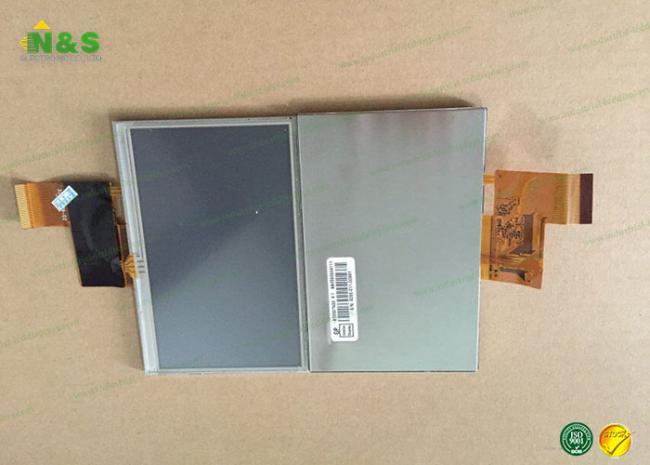

AT050TN33 Picture
