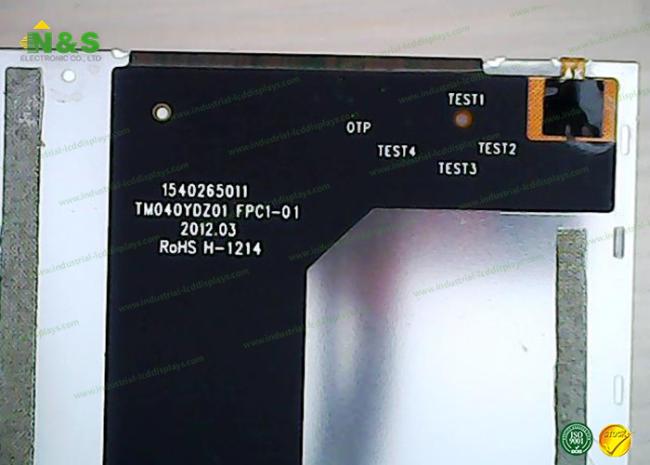

TM040YDZ01 4.0inch Tianma LCD Displays 480(RGB)×800 , WVGA Resolution

What We Can Do for You

1.Professional lithium ion battery pack for over ten years,and have our own factory.
2.Strong R&D team to support.
3.Provide best brand cell:Sanyo,Panasonic,Samsung,LG,Sony.
4.Offer OEM service for customer's order.
5.Quick reply and action.
6.competitive price, good sale and after-sales service

TIANMA TM040YDZ01 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 65% NTSC (CIE1931)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 50/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 9 o'clock
Sunlight Readable : N

TIANMA TM040YDZ01 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 8S1P [8S6P: 8 Serial, 6 Parallel]
Lamp Shape : 1 string
Lamp Voltage : 25.6±1.6V
Lamp Current : 20mA (Typ.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No
