Original Pegasus 5 inch Tianma LCD Displays 45 PIN digital TM050QDH04 350 cd / m²
Price:
usd
MOQ:
1
Delivery Time:
24inch
Brand:
Tianma LCD Displays
Product Description

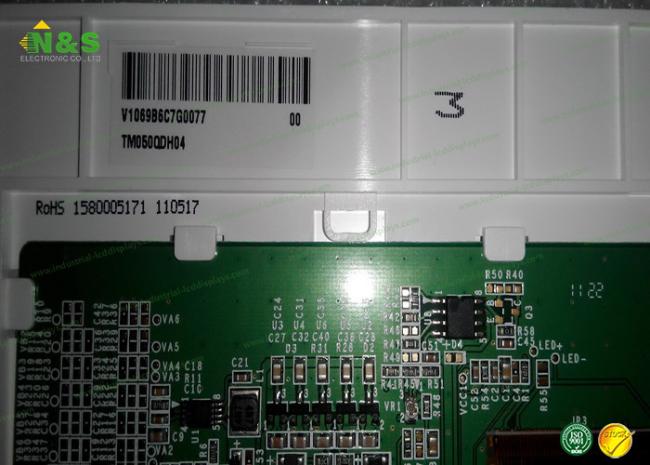

The new factory original Pegasus 5 inch 45PIN LCD digital TM050QDH04 350 cd/m² (Typ.)
TIANMA TM050QDH04 Basic Information
| Panel Brand : | Tianma |
|---|---|
| Panel Model : | TM050QDH04 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : | Phone |
| Operating Temperature : | -20 ~ 70 °C |
| Storage Temperature : | -20 ~ 70 °C |
| RoHS : | ROHS |
TIANMA TM050QDH04 Mechanical Features
| Panel Size : | 5.0“” |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0529×0.1587 mm (H×V) |
| Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
| Weight : | 86±4.3g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 101.568×76.176 mm (H×V) |
| Outline Dimension : | 113.6×88.4 mm (H×V) |
| Outline Depth : | 8.1/10.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. One year warranty promise, we will replace the faulty battery with no extra charge or offer full refund.(human factors except).
5. Accept OEM service.
