HSD070PWW1-A00 HannStar 7.0 inch Normally Black with 150.72×94.2 mm
HSD070PWW1-A00 HannStar 7.0 inch Normally Black with 150.72×94.2 mm
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Panel Size : | 7.0 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 215 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.03925×0.11775 mm (H×V) | |
| Pixel Pitch : | 0.11775×0.11775 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare | |
| Active Area : | 150.72×94.2 mm (H×V) | |
| Outline Dimension : | 161.2×105.5 mm (H×V) | |
| Outline Depth : | 2.35/4.5 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |

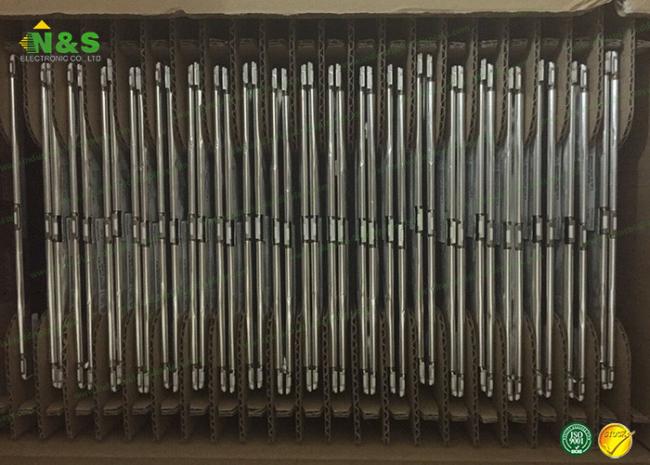

Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
|
|
||
| Brightness : | 400 cd/m² (Typ.) | ||
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 262K (6-bit) | ||
| Color Gamut : | 50% NTSC (CIE1931) | ||
| Response Time : | 25 (Typ.)(Tr+Td) | ||
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | Symmetry | ||
| White color Chromaticity : |
|
||
| White Variation : | 1.25 (Max.)(9 points) | ||
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.h

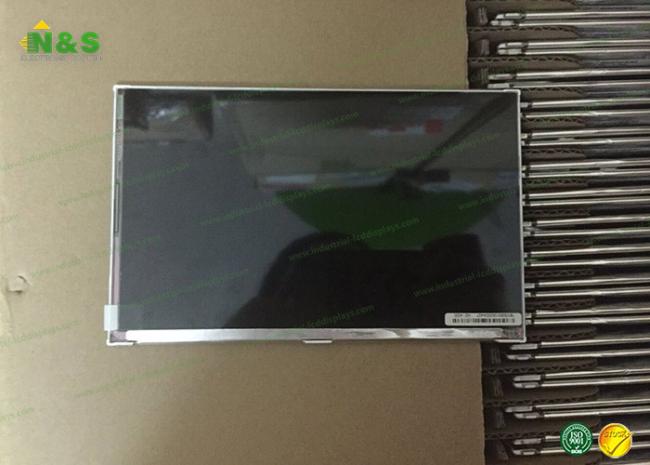

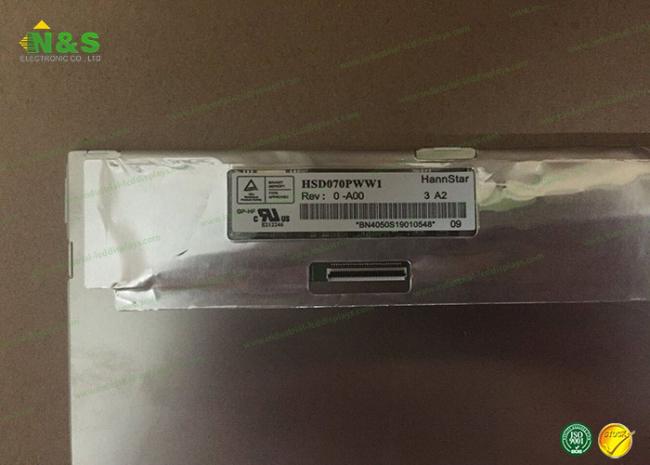

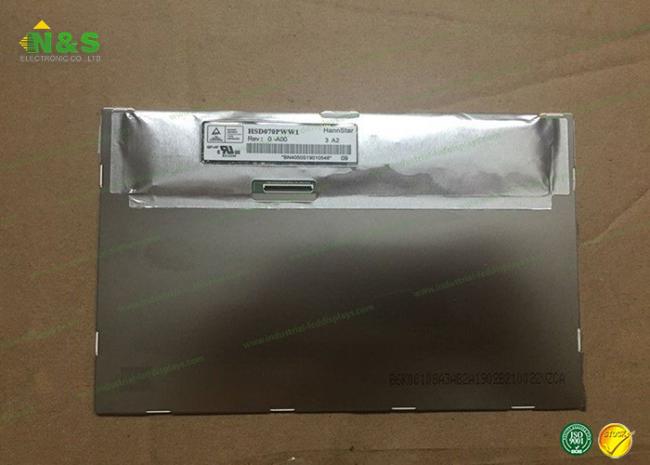

HSD070PWW1-A00 Picture
