TM035KVHG01 3.5 inch tft lcd screen 320×240 8- bit With Cover Lens
TM035KVHG01 TIANMA 3.5 inch 320×240, 8-bit, Parallel/Serial, 2D, WLED, TP, Flat, Assembly Hot Model
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Surface : | Hard coating (4H) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Outline Dimension : | 79.9×68.9 mm (H×V) |
| Outline Depth : | 4.38±0.35 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (Projected Capacitive Touch) |
| Panel Cover : | With Cover Lens |
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
| TM055JYSP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP01 | Tianma | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

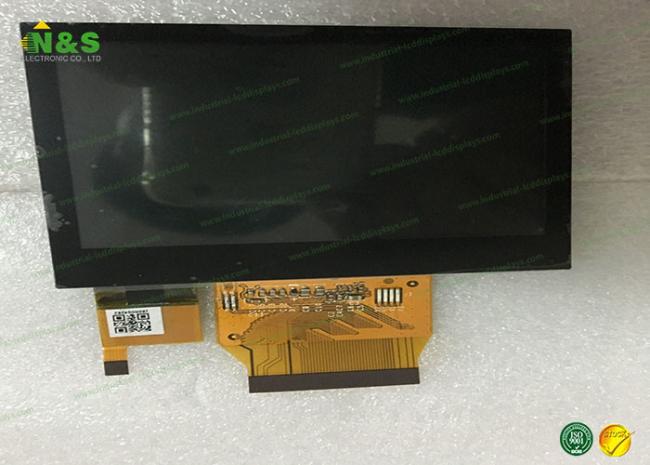

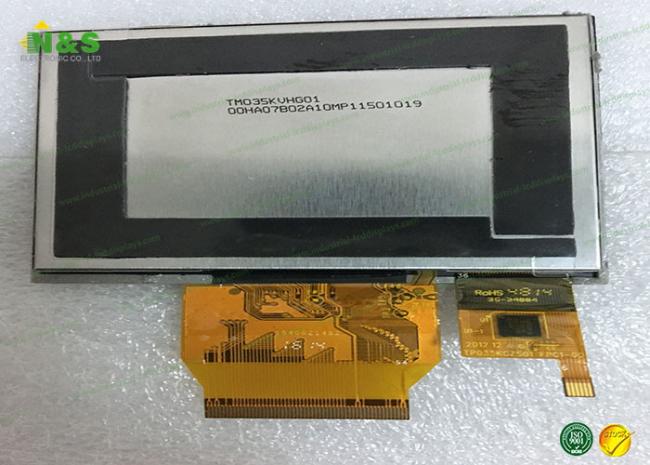

TM035KVHG01 Picture
