LB064V02-TD01 LG LCD Panel 6.4 inch with 130.56×97.92 mm Active Area
LB064V02-TD01 LG LCD Panel 6.4 inch with 130.56×97.92 mm Active Area
LB064V02-TD01 Detail
| Panel Brand : | LG. LCD | |
| Panel Model : | LB064V02-TD01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 6.4 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 130.56×97.92 mm | |
| Outline : | 145.5×111.5 mm | |
| Surface : | Antiglare, Hard coating (3H) | |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 400:1 (Typ.) | |
| Display Colors : | 262K (6-bit) , CIE1931 45% | |
| Response Time : | 10/15 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Signal Interface : | CMOS/TTL (1 ch, 6-bit) , 30 pins | |
|
3.3V (Typ.)(VCC) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
| LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
| LD470DUJ-SFE1 | LG Display | 47" | 1920×1080 |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
| Panel Size : | 6.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 124 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.068×0.204 mm (H×V) |
| Pixel Pitch : | 0.204×0.204 mm (H×V) |
| Weight : | 130/140g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 130.56×97.92 mm (H×V) |
| Bezel Area : | 133.8×101.1 mm (H×V) |
| Outline Dimension : | 145.5×111.5 mm (H×V) |
| Outline Depth : | 6.0±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

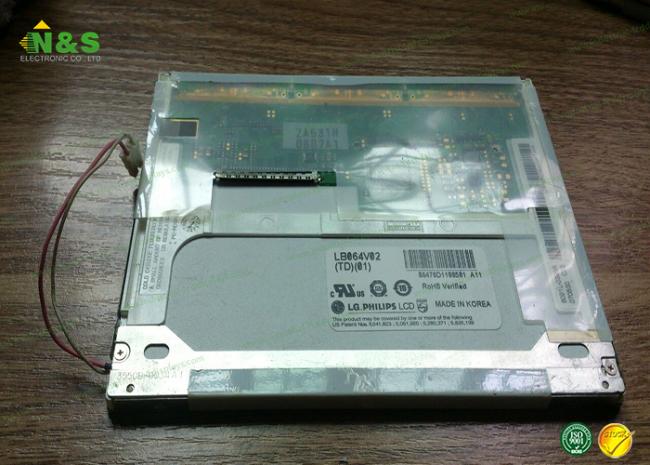

LB064V02-TD01 Picture
