4.0 inch LS040B3SX01 Normally Black Sharp LCD Panel with 55.68×83.52 mm
Price:
Negotiable
MOQ:
1
Delivery Time:
1-3WORK DAY
Brand:
SHARP
Product Description
4.0 inch LS040B3SX01 Normally Black Sharp LCD Panel with 55.68×83.52 mm
LS040B3SX01 Product Information
| Panel Size : | 4.0 inch | ||||||||
| Dot Resolution : | 640(RGB)×960 (DVGA) | ||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||
| Pixel Density : | 291 PPI | ||||||||
| Aspect Ratio : | 2:3 (H:V) | ||||||||
| Form Factor : | Flat Rectangle Display | ||||||||
| Dot Pitch : | 0.029×0.087 mm (H×V) | ||||||||
| Pixel Pitch : | 0.087×0.087 mm (H×V) | ||||||||
| Weight : |
| ||||||||
|
| ||||||||
| Active Area : | 55.68×83.52 mm (H×V) | ||||||||
| Outline Dimension : | 59.8×91.85 mm (H×V) | ||||||||
| Outline Depth : | 1.6±0.2 mm | ||||||||
| Landscape or Portrait : | Portrait type | ||||||||
| Touch Panel : |
| ||||||||
|
| ||||||||
| 450 cd/m² (Typ.) | ||||||||
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | ||||||||
| Display Color : | 16.7M (8-bit) | ||||||||
| Color Gamut : | 72% NTSC (CIE1931) | ||||||||
| Response Time : | 11/24 (Typ.)(Tr/Td) | ||||||||
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | ||||||||
| Viewing Direction : | Symmetry | ||||||||
| White color Chromaticity : |
| ||||||||
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||||||||
| Sunlight Readable : |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
ΠYear warranty
ΠDay shipping
‹ Return
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

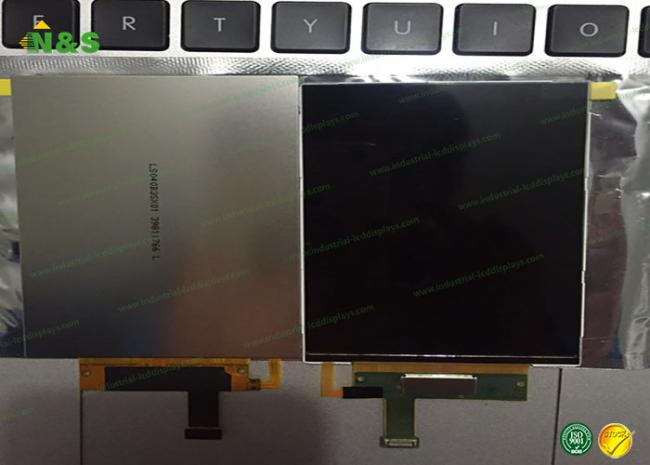

LS040B3SX01 Picture
