LQ6AN102 SHARP 5.6 inchwith 114.2×83.5 mm for Video Door Phone panel

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 1-3WORK DAY
Brand: SHARP
Product Description

LQ6AN102 SHARP 5.6 inchwith 114.2×83.5 mm for Video Door Phone panel



Our service

1. Agent Brand:

* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

2. Quality to be guaranteed:

* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

  1. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

  1. long-term partner:

* Products are sold to more than 20 countries.

  1. Super After-Sale service:

* One year warranty .

6. The best TFT LCD solution:

*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

To get the latest prices, pls feel free to contact us.



Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day



LQ6AN102 Specification

Panel Size : 5.6 inch
Dot Resolution : 320(RGB)×234
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 71 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.119×0.357 mm (H×V)
Pixel Pitch : 0.357×0.357 mm (H×V)
Weight : 270g
Active Area : 114.2×83.5 mm (H×V)
Outline Dimension : 140×102.7 mm (H×V)
Outline Depth : 20.0 (Typ.) mm
Landscape or Portrait : Landscape type
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Viewing Direction : 6 o'clock
Sunlight Readable : N



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LM016LC1S07 SHARP 1.9" 96×128
LS050K3SX06A SHARP 5.0" 720×1280
LK460D3HA10 SHARP 46" 1920×1080
LK315T3HB874 SHARP 31.5" 1366×768
LK315T3HB873 SHARP 31.5" 1366×768

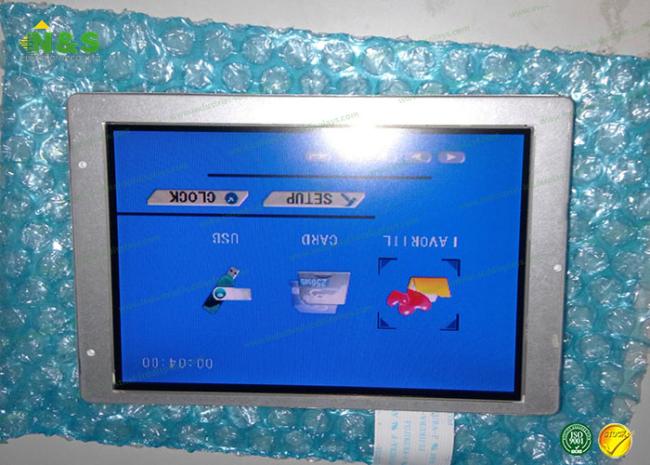

LQ6AN102 Picture
