TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm
TM035WBHG01 TIANMA 3.5 inch Normally White with 53.28×71.04 mm
| Panel Size : | 3.5 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 228 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.037×0.111 mm (H×V) |
| Pixel Pitch : | 0.111×0.111 mm (H×V) |
| Surface : | Antiglare |
| Active Area : | 53.28×71.04 mm (H×V) |
| Outline Dimension : | 64×85 mm (H×V) |
| Outline Depth : | 4.33±0.3 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/70/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 9 o'clock |
| White color Chromaticity : | Wx:0.301; Wy:0.321 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

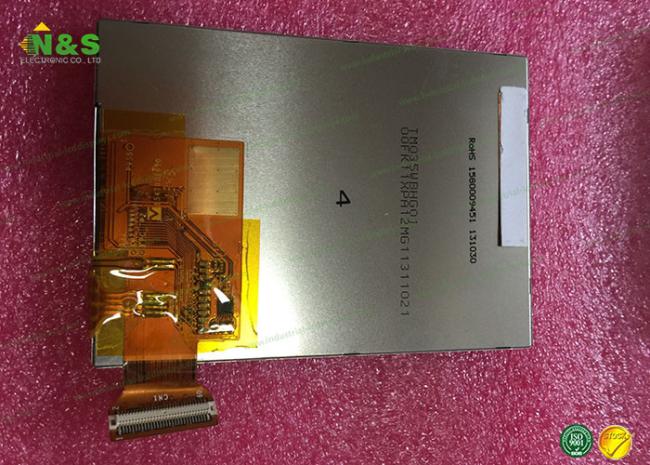

TM035WBHG01 Picture
