4.8 Inch MID UMPC Samsung LCD Panel LMS480KC03 Antiglare , Hard coating
Samsung LCD Panel Normally Black LMS480KC03 4.8 inch for MID UMPC panel
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Product Information:
| Panel Size : | 4.8 inch |
|---|---|
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 194 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0435×0.1305 mm (H×V) |
| Pixel Pitch : | 0.1305×0.1305 mm (H×V) |
| Weight : | 66.1/72.0Kgs (Typ./Max.) |
| Active Area : | 104.4×62.64 mm (H×V) |
| Outline Dimension : | 112×75 mm (H×V) |
| Outline Depth : | 3.8±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | PVA, Normally Black, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.316; Wy:0.349 |
| White Variation : | 1.17/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |

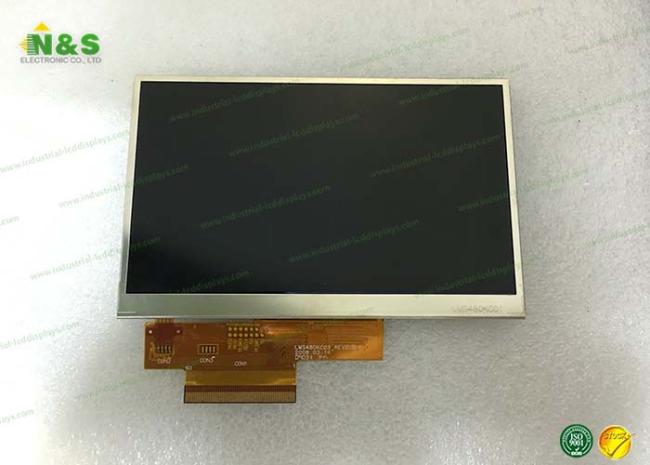

Picture of LMS480KC03
