LP097X02-SLP2 9.7 inch lg display panel , digital flat panel lcd display
LP097X02-SLP2 9.7 inch lg display panel , digital flat panel lcd display
Product Information:
| Panel Size : | 9.7 inch |
|---|---|
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 132 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.064×0.192 mm (H×V) |
| Pixel Pitch : | 0.192×0.192 mm (H×V) |
| Weight : | 143g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area : | 196.608×147.456 mm (H×V) |
| Bezel Area : | 201.01×151.86 mm (H×V) |
| Outline Dimension : | 210.32×164.37 mm (H×V) |
| Outline Depth : | 2.88/5.22 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We can do for You:
1.Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
| Display Mode : | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.309; Wy:0.317 |
| White Variation : | 1.40/1.60 (Typ./Max.)(17 points) |
| Sunlight Readable : | N |

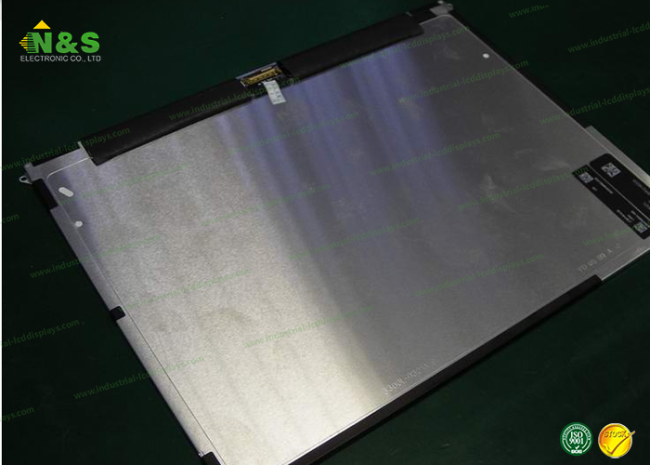

LP097X02-SLP2 Picture
