LQ150X1LG71 Sharp LCD Panel 15.0 inch with 304.1×228.1 mm Active Area
LQ150X1LG71 Sharp LCD Panel 15.0 inch with 304.1×228.1 mm Active Area
LQ150X1LG71 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ150X1LG71 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.1×228.1 mm |
| Outline : | 326×252×11.7 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 550:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.00Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 308.1×232.1 mm (H×V) |
| Outline Dimension : | 326×252 mm (H×V) |
| Outline Depth : | 11.2±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

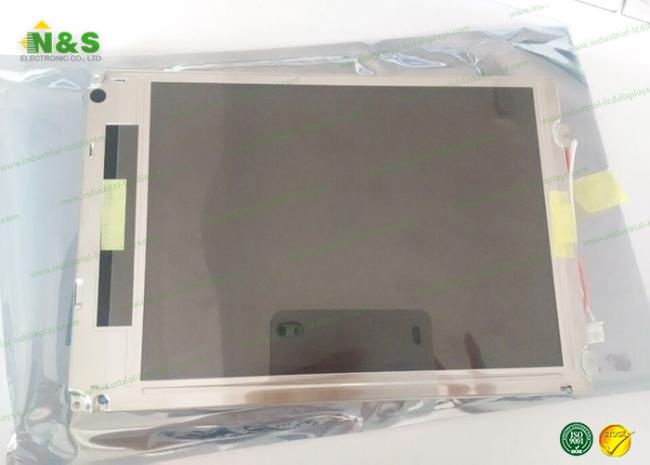

LQ150X1LG71 Picture
