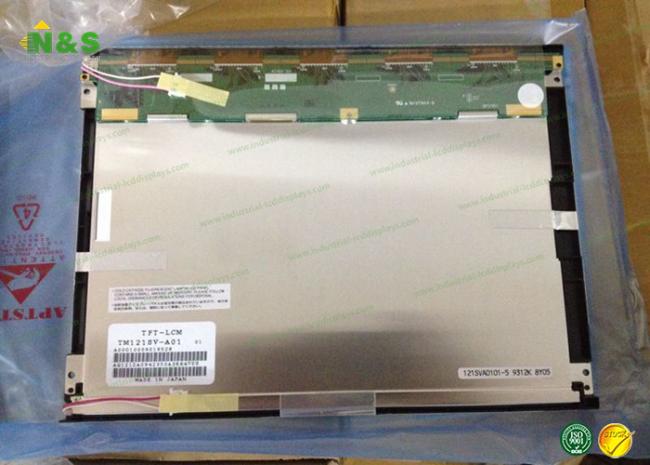

High Brightness SANYO industrial lcd screen Display TM121SV-A01 TM121SV-A02
12.1inch panel SANYO LCD Screen Display Panel For TM121SV-A01 TM121SV-A02
SANYO TM121SV-A01 Basic Information
| Panel Brand : | Sanyo |
|---|---|
| Panel Model : | TM121SV-A01 |
| Model Alias : | L5S30239P00 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : | Mobile Application |
| Operating Temperature : | 0 ~ 50 °C |
| Storage Temperature : | -20 ~ 60 °C |
| RoHS : | ROHS |
| Specific Feature : |
Long Hours Life Time |
SANYO TM121SV-A01 Mechanical Features
Panel Size : 12.1 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 82 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1025×0.3075 mm (H×V)
Pixel Pitch : 0.3075×0.3075 mm (H×V)
Weight : 690g (Typ.)
Active Area : 246×184.5 mm (H×V)
Bezel Area : 249.0×187.5 mm (H×V)
Outline Dimension : 280×218 mm (H×V)
Outline Depth : 11.5 (Typ.) mm
Holes & Brackets : Face mounting holes (4-Φ3.4) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
