HX104X01-212 Industrial LCD Displays HYDIS 10.4 inch LCM 1024×768 340 600:1 262K WLED LVDS
HX104X01-212 Industrial LCD Displays HYDIS 10.4 inch LCM 1024×768 340 600:1 262K WLED LVDS
Products Information:
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 123 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) | |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare | |
| Active Area : | 210.432×157.824 mm (H×V) | |
| Bezel Area : | 216.6×162.4 mm (H×V) | |
| Outline Dimension : | 238.6×173.2 mm (H×V) | |
| Outline Depth : | 4.0/6.8 (Typ./Max.) mm | |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
|
|
||
| Display Mode : |
|
|
| Brightness : | 340 cd/m² (Typ.) | |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 40% NTSC (CIE1931) | |
| Response Time : | 36 (Typ.)(Tr+Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.313; Wy:0.329 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HVT20QV1 | HYDIS | 2.0" | 240×320 |
| HVT15QC1-D00 | HYDIS | 1.5" | 240×320 |
| HVA37WV1-DE0 | HYDIS | 3.7" | 480×800 |
| HVA35WV1-D01 | HYDIS | 3.5" | 480×800 |
| HVA35FV1 | HYDIS | 3.5" | 480×854 |
| HVA32WV1-D00 | HYDIS | 3.2" | 480×800 |
| HV121X02-100 | HYDIS | 12.1" | 1024×768 |

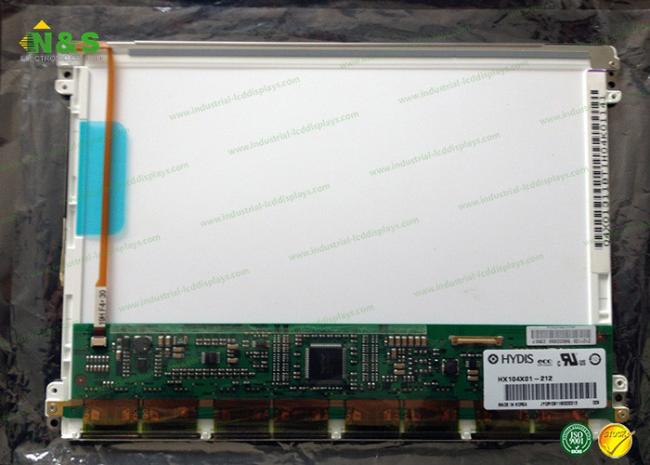

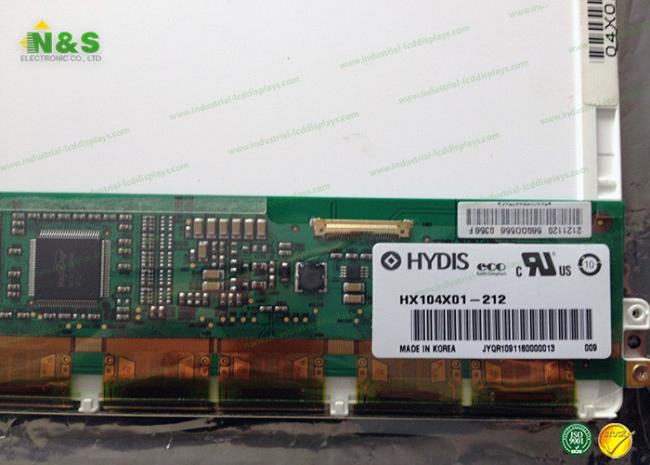

HX104X01-212 Picture
