HJ070IA-02F Innolux LCD Panel Innolux 7.0 inch LCM 1280×800 350 800:1 16.7M WLED LVDS
HJ070IA-02F Innolux LCD Panel Innolux 7.0 inch LCM 1280×800 350 800:1 16.7M WLED LVDS
| Panel Size : | 7.0 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 217 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.039×0.117 mm (H×V) | |
| Pixel Pitch : | 0.117×0.117 mm (H×V) | |
| Weight : | 101.6g | |
| Surface : |
|
|
| Active Area : | 149.76×93.6 mm (H×V) | |
| Bezel Area : | 151.76×95.6 mm (H×V) | |
| Outline Dimension : | 161.2×107.2 mm (H×V) | |
| Outline Depth : | 2.5/4.5 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : |
Without |
| Display Mode : |
|
|
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 15/20 (Typ.)(Tr/Td) | |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |
| F04801-01Z | Innolux | 4.8" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

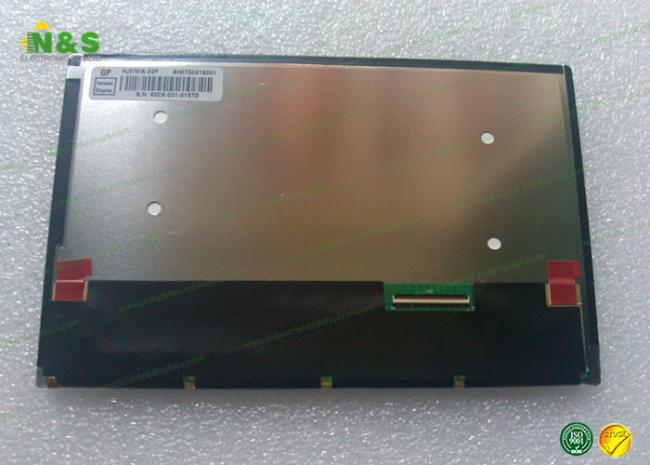

HJ070IA-02F Picture
