CLAA080XA01BW Industrial LCD Displays CPT 8.0 inch LCM 1024×768 300 700:1 262K/16.2M WLED LVDS
CLAA080XA01BW Industrial LCD Displays CPT 8.0 inch LCM 1024×768 300 700:1 262K/16.2M WLED LVDS
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 160 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.05275×0.15825 mm (H×V) | |
| Pixel Pitch : | 0.15825×0.15825 mm (H×V) | |
| Weight : | 170g (Typ.) | |
| Surface : |
|
|
| Active Area : | 162.048×121.536 mm (H×V) | |
| Bezel Area : | 165.4×124.7 mm (H×V) | |
| Outline Dimension : | 183×141 mm (H×V) | |
| Outline Depth : | 3.4±0.3 mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
| Display Mode : |
|
|
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 20 (Typ.)(Tr+Td) | |
| Viewing Angle : | 60/60/70/70 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 3 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |
| CLAG045LH41 AXXA | CPT | 4.5" | 480×854 |
| CLAF020GC21A0 | CPT | 2.0" | 240×320 |
| CLAN080WQ65 XG | CPT | 8.0" | 800×1280 |
| CLAN070NQ06 | CPT | 7.0" | 1024×600 |
| CLAG050LD01 | CPT | 5.0" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

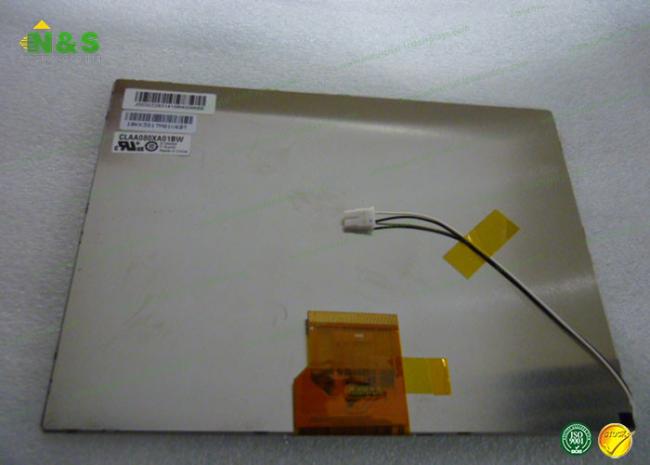

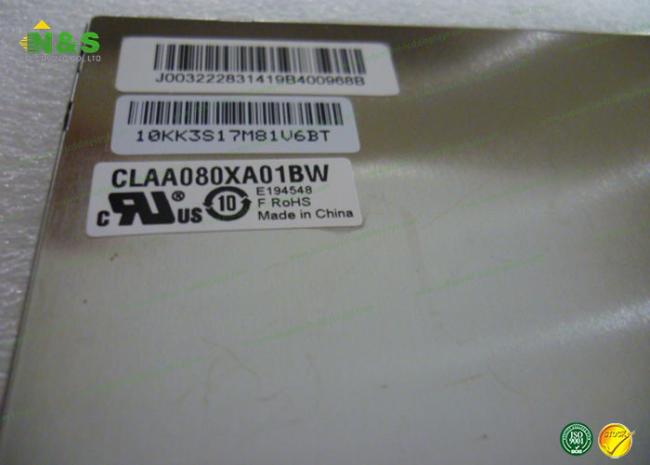

CLAA080XA01BW Picture
