LTM213U6-L01 21.3 inch Samsung Lcd Display Panel Hard coating for Desktop Monitor
LTM213U6-L01 21.3 inch Samsung Lcd Display Panel Hard coating for Desktop Monitor
| Panel Size : | 21.3 inch | |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 94 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.090×0.270 mm (H×V) | |
| Pixel Pitch : | 0.270×0.270 mm (H×V) | |
| Weight : |
| |
| Surface : | Antiglare (Haze 44%), Hard coating (3H) | |
| Active Area : | 432×324 mm (H×V) | |
| Bezel Area : | 436.0×328.0 mm (H×V) | |
| Outline Dimension : | 456×349.5 mm (H×V) | |
| Outline Depth : | 23.0 (Max.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
| |
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 72% NTSC (CIE1931) | |
| Response Time : | 16 (Typ.)(Tr+Td); 8 (Typ.)(G to G) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| Sunlight Readable : | N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
- Provide excellent LCD screen replacements with competitive price.
- Safe, quick and efficient supply chain.
- Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
- Your problems will be replied within 24 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS549HQ02 | Samsung | 5.5" | 720×1280 |
| AMS520BQ12-0 | Samsung | 5.2" | 1080×1920 |
| AMS497DX12-0 | Samsung | 5.0" | 720×1280 |
| AMS163AN01 | Samsung | 1.63" | 320×320 |
| AMS510CV02 | Samsung | 5.1" | 1080×1920 |
| AMS510CV01 | Samsung | 5.1" | 1080×1920 |
| AMS302AK03 | Samsung | 3.0" | 720×480 |
| AMS353FD01-0 | Samsung | 3.5" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

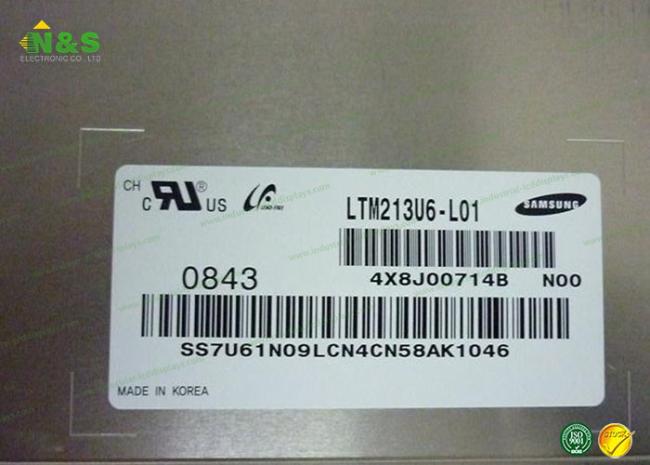

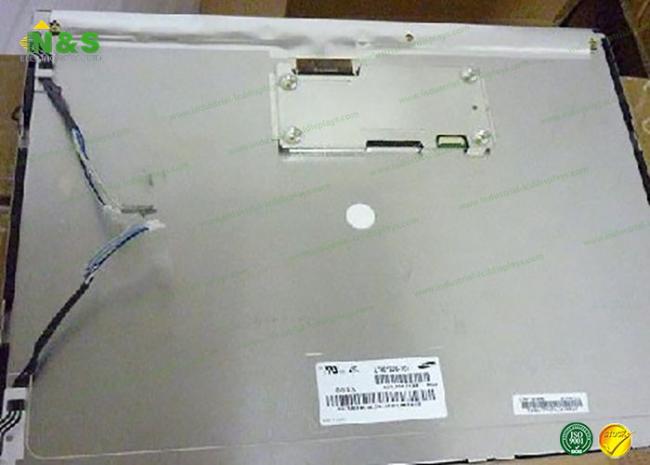

LTM213U6-L01 Picture
