LQ057AC113 Industrial LCD Displays HannStar 5.7 inch Normally White
LQ057AC113 Industrial LCD Displays HannStar 5.7 inch Normally White
|
10.1 inch | |
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 225 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0376×0.1128 mm (H×V) | |
| Pixel Pitch : | 0.1128×0.1128 mm (H×V) | |
| Weight : |
|
|
| Surface : | Hard coating | |
| Active Area : | 216.576×135.36 mm (H×V) | |
| Outline Dimension : | 227.72×148.65 mm (H×V) | |
| Outline Depth : | 2.3/4.4 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Display Mode : |
|
|
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (6-bit + Hi-FRC) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 25 (Typ.)(Tr+Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.25/1.50 (Max.)(5/13 points) | |
| Sunlight Readable : | N |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD045F8W1-A12 | HannStar | 4.5" | 480×854 |
| HSD040F8W1-A01 | HannStar | 4.0" | 480×800 |
| HSD038F7N1-B02 | HannStar | 3.8" | 320×480 |
| HSD038F7N1-A02 | HannStar | 3.8" | 320×480 |
| HSD036FAW1-A02 | HannStar | 3.6" | 240×400 |
| HSD024F3N5-A10 | HannStar | 2.4" | 240×320 |
| HSD040F8W6-D00 | HannStar | 4.0" | 480×800 |
| HSD055FHW2-D00 | HannStar | 5.5" | 720×1280 |
| HSD055BHW3-D00 | HannStar | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

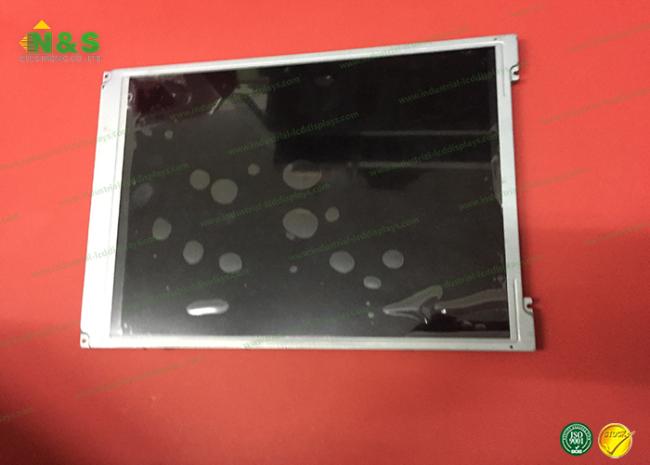

LQ057AC113 Picture
