LM201W01-SLC1 LG LCD Pane 20.1 inch LCM 1680×1050 300 800:1 16.7M CCFL LVDS
LM201W01-SLC1 LG LCD Pane 20.1 inch LCM 1680×1050 300 800:1 16.7M CCFL LVDS
LM201W01-SLC1 Detail
| Panel Size : | 20.1 inch |
|---|---|
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 98 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.086×0.258 mm (H×V) |
| Pixel Pitch : | 0.258×0.258 mm (H×V) |
| Weight : | 2.85/3.00Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 433.44×270.9 mm (H×V) |
| Bezel Area : | 438.4×275.9 mm (H×V) |
| Outline Dimension : | 459.4×296.4 mm (H×V) |
| Outline Depth : | 22.8 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC320DXY-SJA1 | LG Display | 31.5" | 1366×768 |
| LC490EQY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490DUJ-SGE4 | LG Display | 49" | 1920×1080 |
| LC490EGY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHF1 | LG Display | 49" | 3840×2160 |
| LC490EGJ-SHA1 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHA1 | LG Display | 49" | 3840×2160 |
| LM238WF2-SJF1 | LG Display | 23.8" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 7/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |

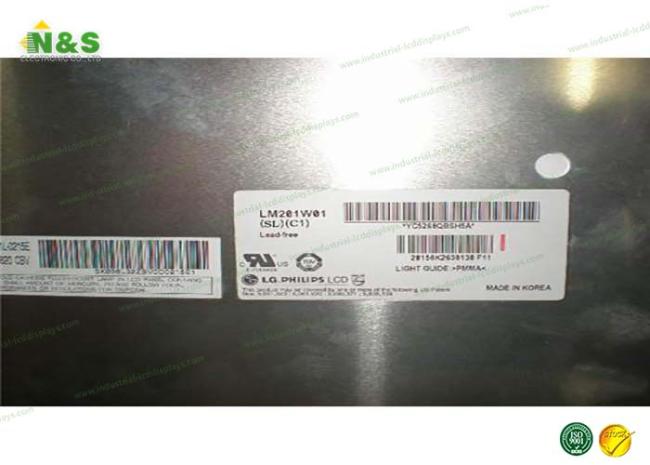

LM201W01-SLC1 Picture
